SY 1.1/2 TF

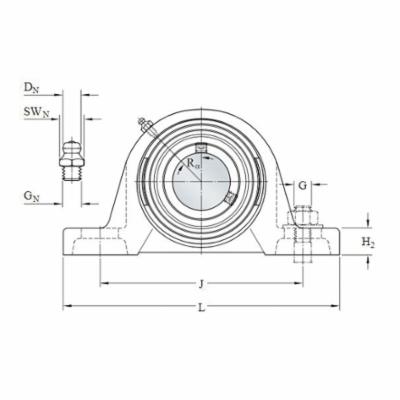

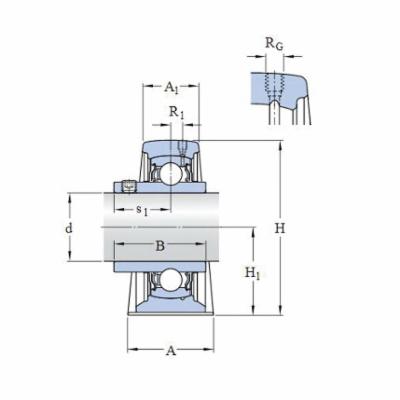

SKF® SY 1.1/2 TF Pillow Block Ball Bearing Unit, 1-1/2 in Dia Bore, 3.8189 in L Bolt Center-to-Center, 1.189 in Base to Bore Centerline, 5 in OAL x 2.2441 in OAH
- CP#:
- Item#: SY 1.1/2 TF
- Mfr#: SY 1.1/2 TF
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Pillow Block Ball Bearing Unit, 1-1/2 in Bore, 3.8189 in Bolt Center-to-Center Length, 1.189 in Base to Bore Centerline, 5 in Overall Length, 1.2598 in Overall Width, 2.2441 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.2598 in Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 6910 lbf Dynamic/4280 lbf Static Load, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 1.2598 in |
| Base to Bore Centerline | : | 1.189 in |
| Bolt Center-to-Center Length | : | 3.8189 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 5 in |
| Load Capacity | : | 6910 lbf Dynamic/4280 lbf Static |
| Material | : | Cast Iron |
| Overall Width | : | 1.2598 in |
| Overall Height | : | 2.2441 in |
| Seal Type | : | Contact |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/253/SKF_SY_1_1_2_TF_Specification_Sheet.pdf
