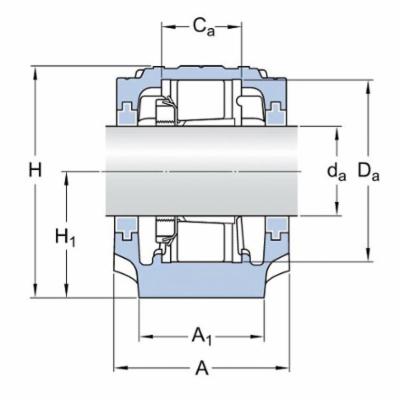

SNL 516-613 VU
SKF® SNL 516-613 VU Pillow Block Housing, 65 mm, 60 mm, 70 mm, 2-1/4 in, 2-11, 16 in, 2-3/4 in, 2-3/16 in ID, Two-Bolt Base Mount, 95 mm Base to Bore Centerline, 12-7/16 in OAL x 6-15/16 in OAH
- CP#:
- Item#: SNL 516-613 VU
- Mfr#: SNL 516-613 VU
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Pillow Block Housing, Series: SNL, 65 mm, 60 mm, 70 mm, 2-1/4 in, 2-11, 16 in, 2-3/4 in, 2-3/16 in ID, Two-Bolt Base Mounting, 95 mm Base to Bore Centerline, 12-7/16 in Overall Length, 4-3/4 in Overall Width, 6-15/16 in Overall Height, Compatible Bore Diameter: 65 mm, 60 mm, 70 mm, 2-1/4 in, 2-11/16 in, 2-3/4 in, 2-3/16 in, Compatible Bearing Type: Spherical Roller Bearing, 10-1/4 in Bolt Center-to-Center Length, 3-5/8 in Base Width, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 3-5/8 in |
| Base to Bore Centerline | : | 95 mm |
| Series | : | SNL |
| Bolt Center-to-Center Length | : | 10-1/4 in |
| Mounting Type | : | Two-Bolt Base |
| Compatible Bearing Type | : | Spherical Roller Bearing |
| Compatible Bore Diameter | : | 65 mm, 60 mm, 70 mm, 2-1/4 in, 2-11/16 in, 2-3/4 in, 2-3/16 in |
| Finish | : | Uncoated |
| Overall Length | : | 12-7/16 in |
| Material | : | Cast Iron |
| Overall Width | : | 4-3/4 in |
| Overall Height | : | 6-15/16 in |
| Inside Diameter | : | 65 mm, 60 mm, 70 mm, 2-1/4 in, 2-11, 16 in, 2-3/4 in, 2-3/16 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/576/SKF_SNL_516-613_VU_Specification_Sheet.pdf
