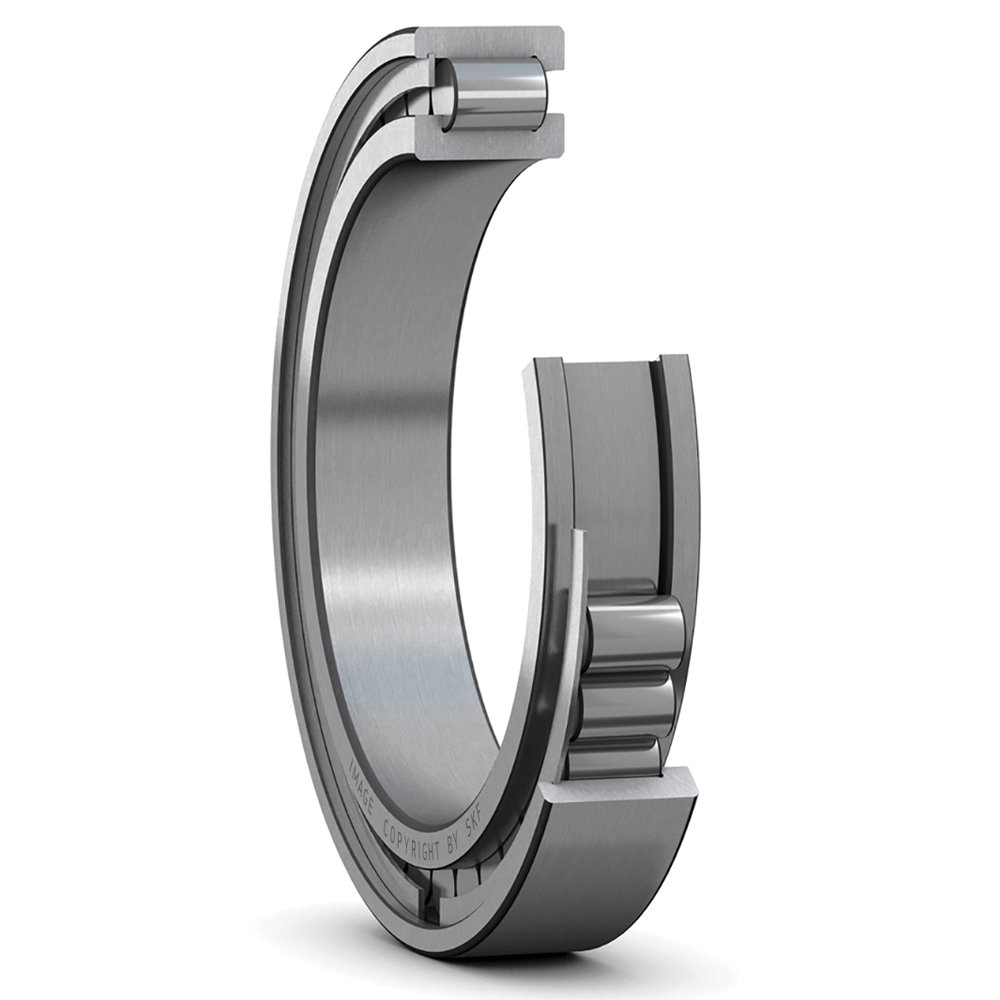

NCF 2922 CV
SKF® NCF 2922 CV NCF Series Full Complement Cylindrical Roller Bearing, 110 mm Dia Bore, 150 mm OD, 1 Row, 24 mm W, 134 kN Dynamic/220 kN Static Load
- CP#:
- Item#: NCF 2922 CV
- Mfr#: NCF 2922 CV
- High load carrying capacity - bearings without a cage incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads
- High stiffness - the increased number of rollers increases radial stiffness
- The separable components of SKF® single row full complement cylindrical roller bearings are interchangeable
- This facilitates mounting and dismounting, as well as maintenance inspections
- Long service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Cylindrical Roller Bearings are available in a wide range of designs, series, variants and sizes. The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials. The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life. Cylindrical Roller Bearings are also available in sealed or split designs. In sealed bearings, the rollers are protected from contaminants, water and dust, while providing lubricant retention and contaminant exclusion. This provides lower friction and longer service life. Split bearings are intended primarily for bearing arrangements which are difficult to access, such as crank shafts, where they simplify maintenance and replacements.
SKF® Cylindrical Roller Bearing, Full Complement, Series: NCF Series, 110 mm Bore Dia, 150 mm Outside Dia, 1 Row, 24 mm Width, Open Closure, 134 kN Dynamic/220 kN Static, Steel Bearing, 2400 rpm Limiting/1900 rpm Reference Maximum
SPECIFICATIONS
| Series | : | NCF Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 134 kN Dynamic/220 kN Static |
| Maximum Speed | : | 2400 rpm Limiting/1900 rpm Reference |
| Outside Diameter | : | 150 mm |
| Number of Rows | : | 1 |
| Width | : | 24 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1035/SKF_NCF2922CV_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1036/SKF_RNU1009ECP_Catalog.pdf
