HA 320 E

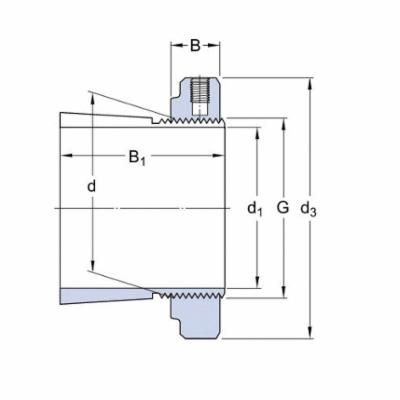

SKF® HA 320 E H Series Adapter Sleeve, 3-7/16 in Dia Shaft, 3.937 in ID x 5.1181 in OD, M100 x 2 Thread
- CP#:
- Item#: HA 320 E
- Mfr#: HA 320 E
- Most commonly used components for locating bearings with a tapered bore onto a cylindrical seat
- They are easy to install and require no additional location on the shaft
- When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft
- When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Adapter Sleeve, Series: H Series, 3-7/16 in Shaft Dia, 3.937 in Inside Dia, 5.1181 in Outside Dia, 2.7953 in Overall Length, M100 x 2, 21 mm Width
SPECIFICATIONS
| Series | : | H Series |
| Overall Length | : | 2.7953 in |
| Shaft Diameter | : | 3-7/16 in |
| Outside Diameter | : | 5.1181 in |
| Thread Size | : | M100 x 2 |
| Width | : | 21 mm |
| Inside Diameter | : | 3.937 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/596/SKF_HA_320_E_Specification_Sheet.pdf
