FYT 1. FM

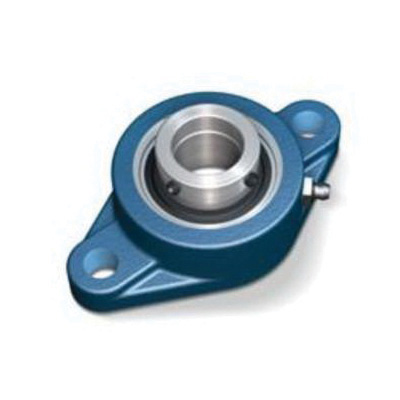

SKF® FYT 1. FM Standard-Duty Non-Expansion Flanged Ball Bearing Unit, 1 in Dia Bore, 3-7/8 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2.752 in OAL/Dia
- CP#:
- Item#: FYT 1. FM
- Mfr#: FYT 1. FM
- Prelubricated with a high quality, long life lithium/calcium grease
- Sphered housing bore mates with sphered O.D. of bearing, allows unit to accommodate for initial errors in alignment
- Designation permanently laser marked for easy identification of unit
- Grade #10 balls, ground and honed raceways for precision, quiet running and higher speed capacity
- Molded glass fiber reinforced polyamide cage for durability and quiet running
- Slotted bolt holes allow for a range of base bolt spacings and provide for adjustment at installation
- Solid housing provides a robust base with high break strength
- Eccentric self-locking features a machined collar and bearing inner ring which act as mating cams when assembled on the shaft
- FM series units consists of grease-purgeable contact seal is comprised of a wear resistant elastomer lip bonded to a steel trash guard
- Narrow inner ring
- YET series insert
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Two-bolt cast iron flange units flange units support shafts through walls, bulkheads and other flat surfaces but have a more compact two-bolt design. F2BM medium duty housings accommodate a larger bearing for a given shaft size, resulting in a greater load carrying capacity. Both series are supplied with a grease fitting for relubrication and provide for initial bearing alignment.
SKF® Flanged Ball Bearing Unit, Standard-Duty Non-Expansion, Series: FYT, 1 in Bore, 3-7/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2.752 in Overall Length/Diameter, 1.673 in Overall Depth, 4-7/8 in Overall Height, Eccentric Collar Locking Device, Cast Iron Bearing, Elastomer Seal, 3150 lb Dynamic/1760 lb Static Load, 7000 rpm Maximum, 110 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-7/8 in |
| Series | : | FYT |
| Bearing Material | : | Cast Iron |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric Collar |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Maximum Speed | : | 7000 rpm |
| Overall Depth | : | 1.673 in |
| Overall Height | : | 4-7/8 in |
| Overall Length/Diameter | : | 2.752 in |
| Seal Material | : | Elastomer |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/626/SKF_SY_1_2_FM_Catalog.pdf
