FYRP 3

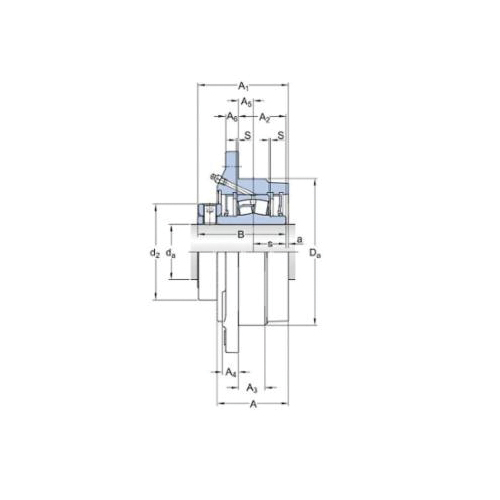

SKF® FYRP 3 Spherical/Non Expansion Roller Bearing Piloted Flanged Unit, 3 in Dia Bore, 7-1/2 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 8-3/4 in OAL/Dia
- CP#:
- Item#: FYRP 3
- Mfr#: FYRP 3
- SKF® roller bearing units are assembled, greased and ready-to-mount, saving time and reducing the risk of contaminating or damaging the bearing during installation
- The bearing units can be used with commercial grade shafts and are located easily on the shaft by tightening the set (grub) screws in the mounting collar or locking collar
- The housing base is reinforced with ribs and the area around the attachment bolt holes is strengthened to minimize the risk of cracking caused by over-tightening the attachment bolts
- Easy replacement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® inch roller bearings units are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. With their simple and safe installation and easy alignment, they are an excellent alternative to sleeve mounted bearings in split housings. The assortment for inch shafts includes SKF® ConCentra units and collar mount units.
SKF® Roller Bearing Piloted Flanged Unit, Spherical/Non Expansion, Series: FYRP, 3 in Bore, 7-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 8-3/4 in Overall Length/Diameter, 3-7/8 in Overall Depth, 8-3/4 in Overall Height, Set Screw Locking Device, 35500 lbf Dynamic/46800 lbf Static Load, 2800 rpm Maximum, 110 deg F, Uncoated
SPECIFICATIONS
| Series | : | FYRP |
| Bolt Circle Diameter | : | 7-1/2 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Locking Device | : | Set Screw |
| Load Capacity | : | 35500 lbf Dynamic/46800 lbf Static |
| Maximum Speed | : | 2800 rpm |
| Overall Depth | : | 3-7/8 in |
| Overall Height | : | 8-3/4 in |
| Overall Length/Diameter | : | 8-3/4 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/27/SKF_FYRP_3_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/70/SKF_FYR_2_7_16_H_Catalog.pdf
