FYR 3 7/16

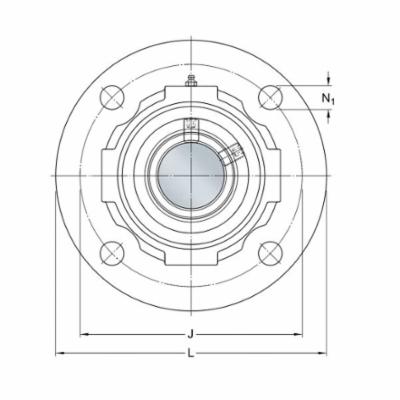

SKF® FYR 3 7/16 Spherical/Non Expansion Roller Bearing Round Flanged Unit, 3-7/16 in Dia Bore, 9-1/2 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 11-1/8 in OAL/Dia
- CP#:
- Item#: FYR 3.7/16
- Mfr#: FYR 3 7/16
- SKF® roller bearing units are assembled, greased and ready-to-mount, saving time and reducing the risk of contaminating or damaging the bearing during installation
- The bearing units can be used with commercial grade shafts and are located easily on the shaft by tightening the set (grub) screws in the mounting collar or locking collar
- The housing base is reinforced with ribs and the area around the attachment bolt holes is strengthened to minimize the risk of cracking caused by over-tightening the attachment bolts
- Easy replacement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® inch roller bearings units are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. With their simple and safe installation and easy alignment, they are an excellent alternative to sleeve mounted bearings in split housings. The assortment for inch shafts includes SKF® ConCentra units and collar mount units.

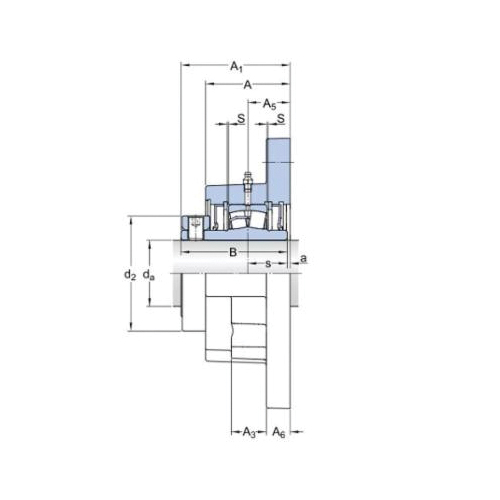

SKF® Roller Bearing Round Flanged Unit, Spherical/Non Expansion, Series: FYR, 3-7/16 in Bore, 9-1/2 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 11-1/8 in Overall Length/Diameter, 4-1/4 in Overall Depth, 11-1/8 in Overall Height, Set Screw Locking Device, 56900 lbf Dynamic/76400 lbf Static Load, 2300 rpm Maximum, 110 deg F, Uncoated
SPECIFICATIONS
| Series | : | FYR |
| Bolt Circle Diameter | : | 9-1/2 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Set Screw |
| Load Capacity | : | 56900 lbf Dynamic/76400 lbf Static |
| Maximum Speed | : | 2300 rpm |
| Overall Depth | : | 4-1/4 in |
| Overall Height | : | 11-1/8 in |
| Overall Length/Diameter | : | 11-1/8 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/636/SKF_FYR_3_7_16_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/70/SKF_FYR_2_7_16_H_Catalog.pdf
