FY 1.7/16 LF/AH

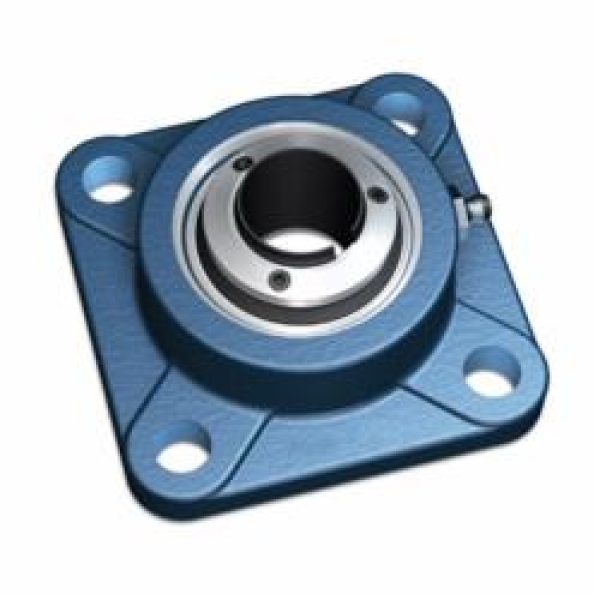

SKF® FY 1.7/16 LF/AH FY Series Standard-Duty Flanged Ball Bearing Unit, 1-7/16 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-5/8 in OAL/Dia
- CP#:
- Item#: FY 1.7/16 LF/AH
- Mfr#: FY 1.7/16 LF/AH
- Prelubricated with a high quality, long life lithium/calcium grease
- Sphered housing bore mates with sphered O.D. of bearing, allows unit to accommodate for initial errors in alignment
- Designation permanently laser marked for easy identification of unit
- Grade #10 balls, ground and honed raceways for precision, quiet running and higher speed capacity
- Molded glass fiber reinforced polyamide cage for durability and quiet running
- Slotted bolt holes allow for a range of base bolt spacings and provide for adjustment at installation
- Solid housing provides a robust base with high break strength
- ConCentra™ locking features patented mechanical connector that applies a near 360 deg concentric grip around the entire circumference of the shaft
- LF series units consists of the basic seal and a flinger mounted outboard, the flinger provides extra protection of the contact element
- Wide inner ring
- YSP series insert
- Anti-rotation pin for air handling (AH)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Four-bolt cast iron flange units are designed to support shafts through walls, bulkheads and other flat surfaces. The housing mounts flush to the surface and the load is carried by the four mounting bolts. F4BM medium duty housings accommodate a larger bearing for a given shaft size, resulting in a greater load carrying capacity. Both series are supplied with a grease fitting for relubrication and provide for initial bearing alignment.
SKF® Flanged Ball Bearing Unit, Standard-Duty, Series: FY Series, 1-7/16 in Bore, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-5/8 in Overall Length/Diameter, 1.87 in Overall Depth, 4-5/8 in Overall Height, ConCentra™ Concentric Collar Locking Device, Cast Iron Bearing, NBR Seal, 5740 lb Dynamic/3440 lb Static Load, 5300 rpm Maximum, -40 to 210 deg F
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SKF_SY_1_2_FM_Catalog.pdf
