6332 M/C3

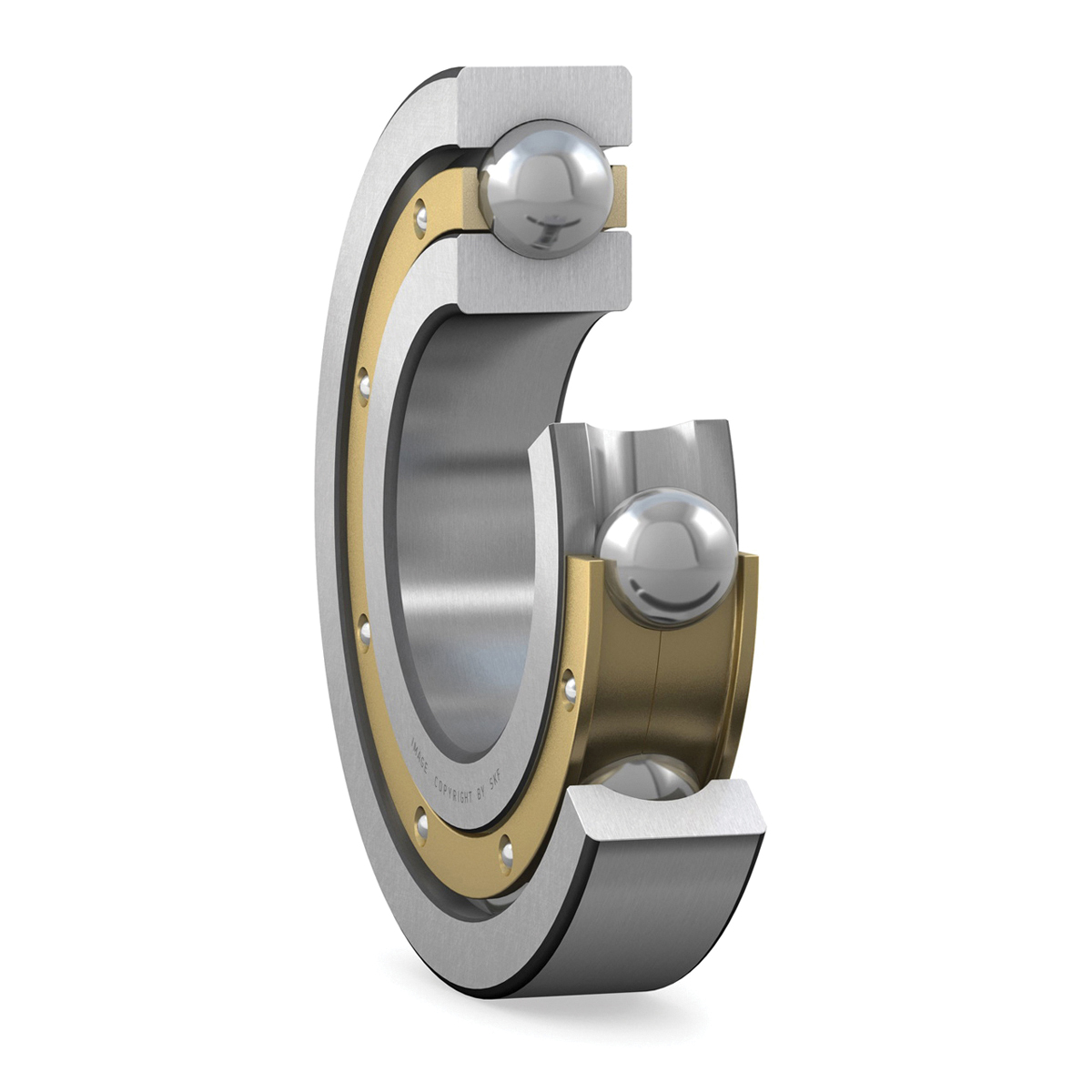

SKF® 6332 M/C3 6300 Series Cylindrical Bore Deep Groove Ball Bearing, 160 mm Dia Bore, 340 mm OD, 1 Row, 68 mm W, 276 kN Dynamic/285 kN Static Load
- CP#:
- Item#: 6332 M/C3
- Mfr#: 6332 M/C3
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore, Series: 6300 Series, 160 mm Bore Dia, 340 mm Outside Dia, 1 Row, 68 mm Width, Open Closure, 276 kN Dynamic/285 kN Static, Steel Bearing, Machined Brass Cage, 3800 rpm Limiting/4000 rpm Reference Maximum
SPECIFICATIONS
| Series | : | 6300 Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 276 kN Dynamic/285 kN Static |
| Maximum Speed | : | 3800 rpm Limiting/4000 rpm Reference |
| Outside Diameter | : | 340 mm |
| Number of Rows | : | 1 |
| Width | : | 68 mm |
