6318/C3VL0241

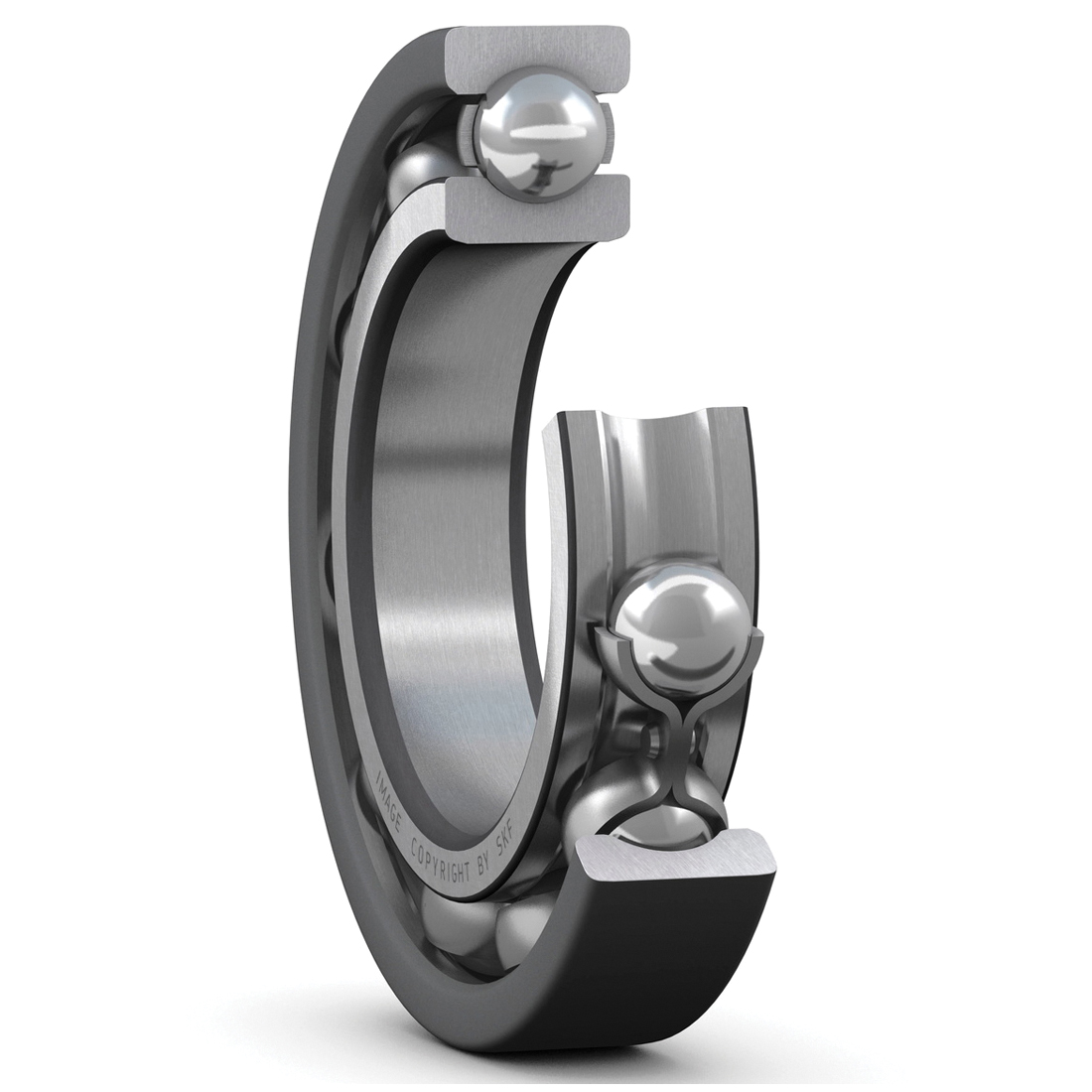

SKF® INSOCOAT® 6318/C3VL0241 6300 Series Cylindrical Bore Deep Groove Ball Bearing, 90 mm Dia Bore, 190 mm OD, 1 Row, 43 mm W, 151 kN Dynamic/108 kN Static Load
- CP#:
- Item#: 6318/C3VL0241
- Mfr#: 6318/C3VL0241
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® INSOCOAT® Deep Groove Ball Bearing, Cylindrical Bore, Series: 6300 Series, 90 mm Bore Dia, 190 mm Outside Dia, 1 Row, 43 mm Width, Open Closure, 151 kN Dynamic/108 kN Static, Steel Bearing, Steel Cage, 4800 rpm Limiting/7500 rpm Reference Maximum, Ceramic Coated
SPECIFICATIONS
| Series | : | 6300 Series |
| Bearing Material | : | Steel |
| Finish | : | Ceramic Coated |
| Load Capacity | : | 151 kN Dynamic/108 kN Static |
| Maximum Speed | : | 4800 rpm Limiting/7500 rpm Reference |
| Outside Diameter | : | 190 mm |
| Number of Rows | : | 1 |
| Width | : | 43 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_6318C3VL0241_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1035/SKF_6300_Catalog.pdf
