6226/C3VL0241

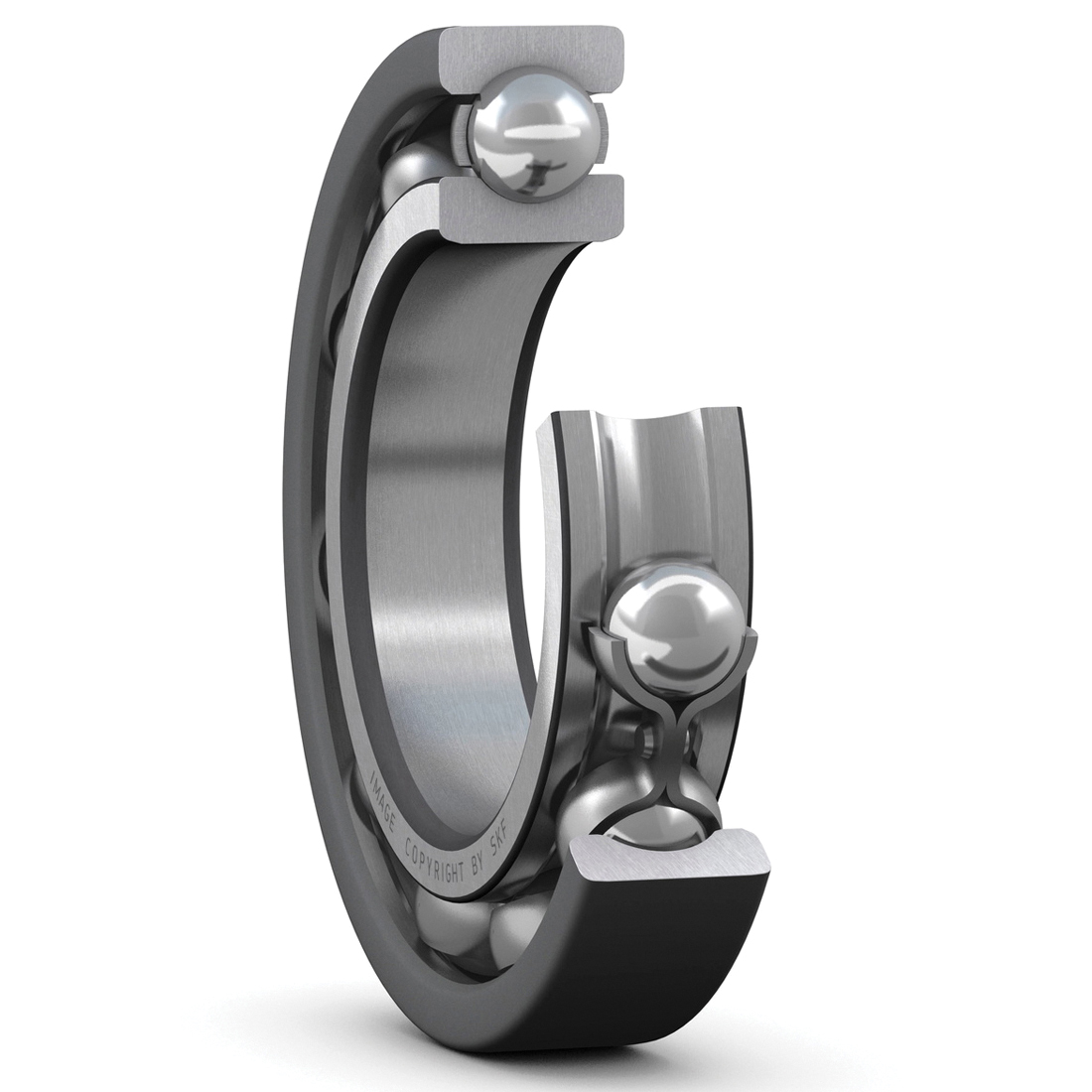

SKF® INSOCOAT® 6226/C3VL0241 6200 Series Cylindrical Bore Deep Groove Ball Bearing, 130 mm Dia Bore, 230 mm OD, 1 Row, 40 mm W, 155.99 kN Dynamic/132.976 kN Static Load
- CP#:
- Item#: 6226/C3VL0241
- Mfr#: 6226/C3VL0241
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® INSOCOAT® Deep Groove Ball Bearing, Cylindrical Bore, Series: 6200 Series, 130 mm Bore Dia, 230 mm Outside Dia, 1 Row, 40 mm Width, Open Closure, 155.99 kN Dynamic/132.976 kN Static, Steel Bearing, Steel Cage, 3600 rpm Limiting/5600 rpm Reference Maximum, Ceramic Coated
SPECIFICATIONS
| Series | : | 6200 Series |
| Bearing Material | : | Steel |
| Finish | : | Ceramic Coated |
| Load Capacity | : | 155.99 kN Dynamic/132.976 kN Static |
| Maximum Speed | : | 3600 rpm Limiting/5600 rpm Reference |
| Outside Diameter | : | 230 mm |
| Number of Rows | : | 1 |
| Width | : | 40 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1035/SKF_6226C3VL0241_Specification_Sheet.pdf
