- SKF® 6209-2RZTN9/HC5C3WT
6209-2RZTN9/HC5C3WT

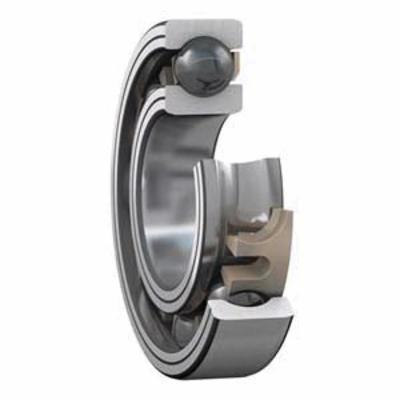

SKF® 6209-2RZTN9/HC5C3WT Precision Hybrid Deep Groove Ball Bearing, 1.7717 in Dia Bore, 3.3465 in OD, 1 Rows, 0.748 in W, 7891 lbf Dynamic/4856 lbf Static Load
- CP#:
- Item#: 6209-2RZTN9/HC5C3WT
- Mfr#: 6209-2RZTN9/HC5C3WT
- Non-separable product
- Recommended for high speeds applications
- Accommodate radial loads and axial loads in both directions because their uninterrupted raceway grooves have a close osculation with the balls
- TN9 glass fiber reinforced PA66 cage, ball centered
- C3-radial internal clearance greater than normal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Hybrid Deep Groove Ball Bearing, Precision, 1.7717 in Bore Dia, 3.3465 in Outside Dia, 1 Rows, 0.748 in Width, 7891 lbf Dynamic/4856 lbf Static, 20000 rpm Reference/10000 rpm Limiting Maximum, 250 deg F
SPECIFICATIONS
| Load Capacity | : | 7891 lbf Dynamic/4856 lbf Static |
| Maximum Speed | : | 20000 rpm Reference/10000 rpm Limiting |
| Outside Diameter | : | 3.3465 in |
| Number of Rows | : | 1 |
| Width | : | 0.748 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/118/SKF_6209_2RZTN9_HC5C3WT_Specification_Sheet.pdf
