SKF®
6208-2Z/VA208

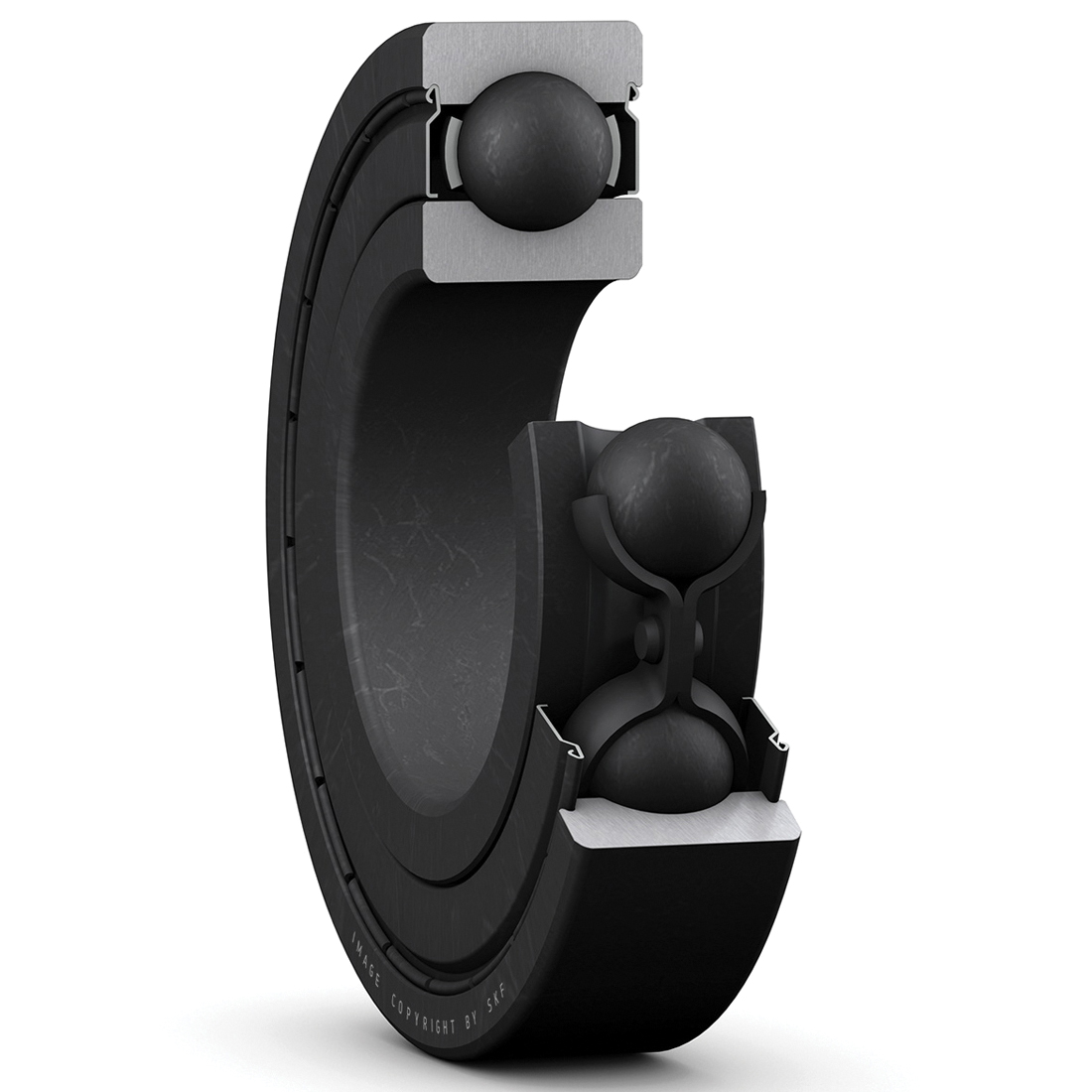

SKF® 6208-2Z/VA208 6200 Series Cylindrical Bore Deep Groove Ball Bearing, 40 mm Dia Bore, 80 mm OD, 1 Row, 18 mm W, 32.498 kN Dynamic/18.998 kN Static Load
- Item#: 6208-2Z/VA208
- Mfr#: 6208-2Z/VA208
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore, Series: 6200 Series, 40 mm Bore Dia, 80 mm Outside Dia, 1 Row, 18 mm Width, Non-Contact Double Shielded Closure, 32.498 kN Dynamic/18.998 kN Static, Steel Bearing, Graphite Cage, 70 rpm Limiting Maximum, Phosphate Coated
SPECIFICATIONS
| Bearing Material | : | Steel |
| Cage Material | : | Graphite |
| Closure Type | : | Non-Contact Double Shielded |
| Finish | : | Phosphate Coated |
| Maximum Speed | : | 70 rpm Limiting |
| Series | : | 6200 Series |
| Type | : | Cylindrical Bore |
| Bore Diameter | : | 40 mm |
| Outside Diameter | : | 80 mm |
| Number of Rows | : | 1 |
| Width | : | 18 mm |
| Load Capacity | : | 32.498 kN Dynamic/18.998 kN Static |
