6207-2RZTN9/HC5C3WT

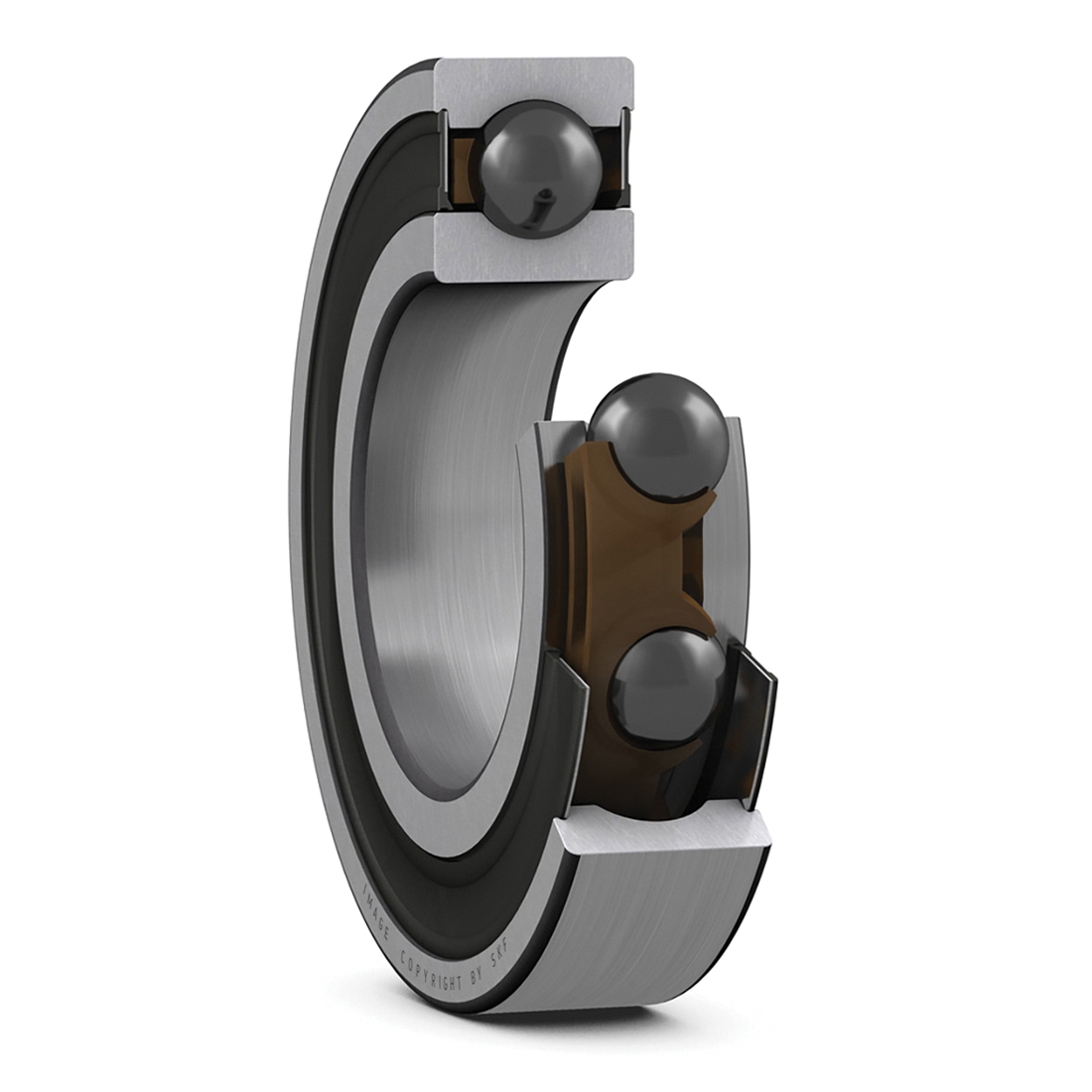

SKF® 6207-2RZTN9/HC5C3WT 6200 Series Cylindrical Bore Hybrid Deep Groove Ball Bearing With Ceramic Ball, 35 mm Dia Bore, 72 mm OD, 1 Row, 17 mm W, 25.501 kN Dynamic/15.301 kN Static Load
- CP#:
- Item#: 6207-2RZTN9/HC5C3WT
- Mfr#: 6207-2RZTN9/HC5C3WT
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore Hybrid, Series: 6200 Series, 35 mm Bore Dia, 72 mm Outside Dia, 1 Row, 17 mm Width, Non-Contact Double Sealed Closure, 25.501 kN Dynamic/15.301 kN Static, Steel Bearing, NBR Seal, Polyamide Cage, 13000 rpm Limiting/24000 rpm Reference Maximum, -40 to 210 deg F, Uncoated
SPECIFICATIONS
| Series | : | 6200 Series |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 25.501 kN Dynamic/15.301 kN Static |
| Maximum Speed | : | 13000 rpm Limiting/24000 rpm Reference |
| Outside Diameter | : | 72 mm |
| Number of Rows | : | 1 |
| Seal Material | : | NBR |
| Width | : | 17 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1035/SKF_62072RZTN9HC5C3WT_Specification_Sheet.pdf
