6206 NRJEM

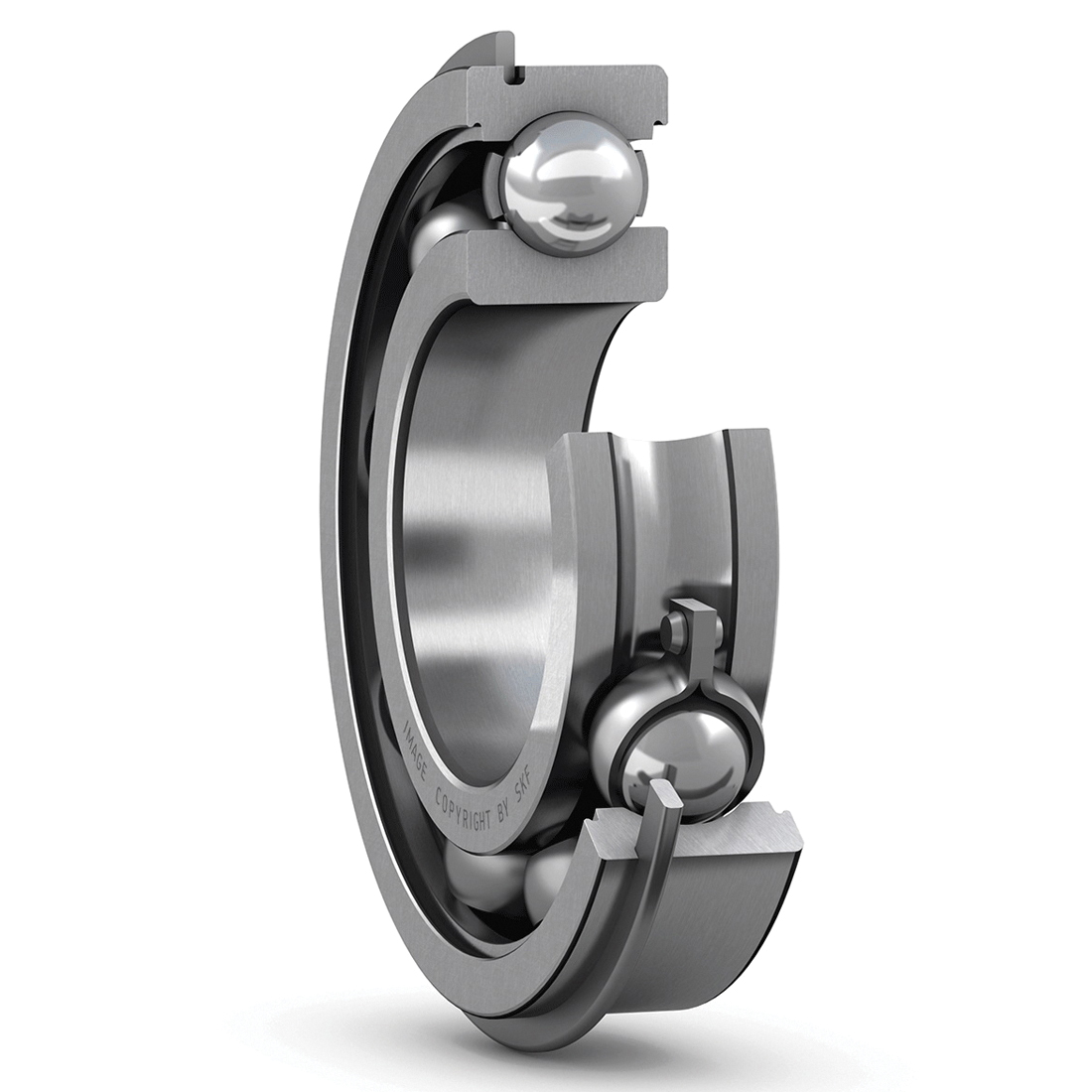

SKF® 6206 NRJEM 6200 Series Cylindrical Bore Deep Groove Ball Bearing With Snap Ring Groove, 30 mm Dia Bore, 62 mm OD, 1 Row, 16 mm W, 20.3 kN Dynamic/11.2 kN Static Load
- CP#:
- Item#: 6206 NRJEM
- Mfr#: 6206 NRJEM
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore, Series: 6200 Series, 30 mm Bore Dia, 62 mm Outside Dia, 1 Row, 16 mm Width, Open Closure, 20.3 kN Dynamic/11.2 kN Static, Steel Bearing, Stamped Steel Cage, 15000 rpm Limiting/24000 rpm Reference Maximum, Uncoated
SPECIFICATIONS
| Series | : | 6200 Series |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 20.3 kN Dynamic/11.2 kN Static |
| Maximum Speed | : | 15000 rpm Limiting/24000 rpm Reference |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 1 |
| Width | : | 16 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_62062ZNRJEM_Specification_Sheet.pdf
