6203/C3

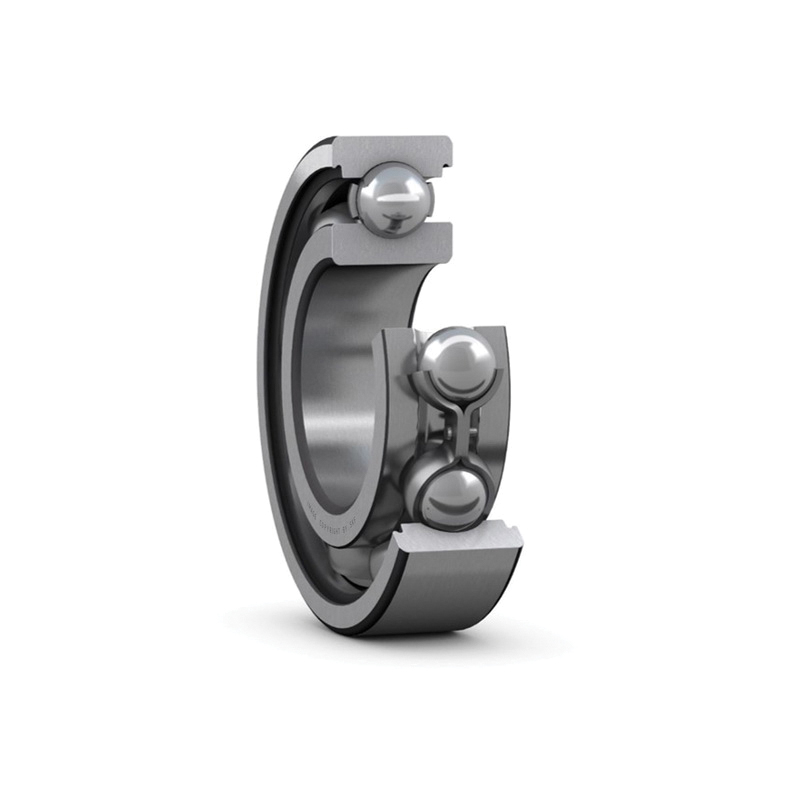

SKF® 6203/C3 6200 Deep Groove Ball Bearing, 17 mm Dia Bore, 40 mm OD, 1 Row, 12 mm W, 9.95 kN Load
- CP#:
- Item#: 6203/C3
- Mfr#: 6203/C3
- 9.95 kN dynamic/4.75 kN static load
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Series: 6200, 17 mm Bore, 40 mm OD, 1 Row, 12 mm Width, Open Closure, 9.95 kN Load, Steel Bearing, Steel Cage, 24000 rpm Maximum
SPECIFICATIONS
| Series | : | 6200 |
| Bearing Material | : | Steel |
| Load Capacity | : | 9.95 kN |
| Maximum Speed | : | 24000 rpm |
| Outside Diameter | : | 40 mm |
| Number of Rows | : | 1 |
| Width | : | 12 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/131/SKF_6203C3_Specification_Sheet.pdf
