61856 MA

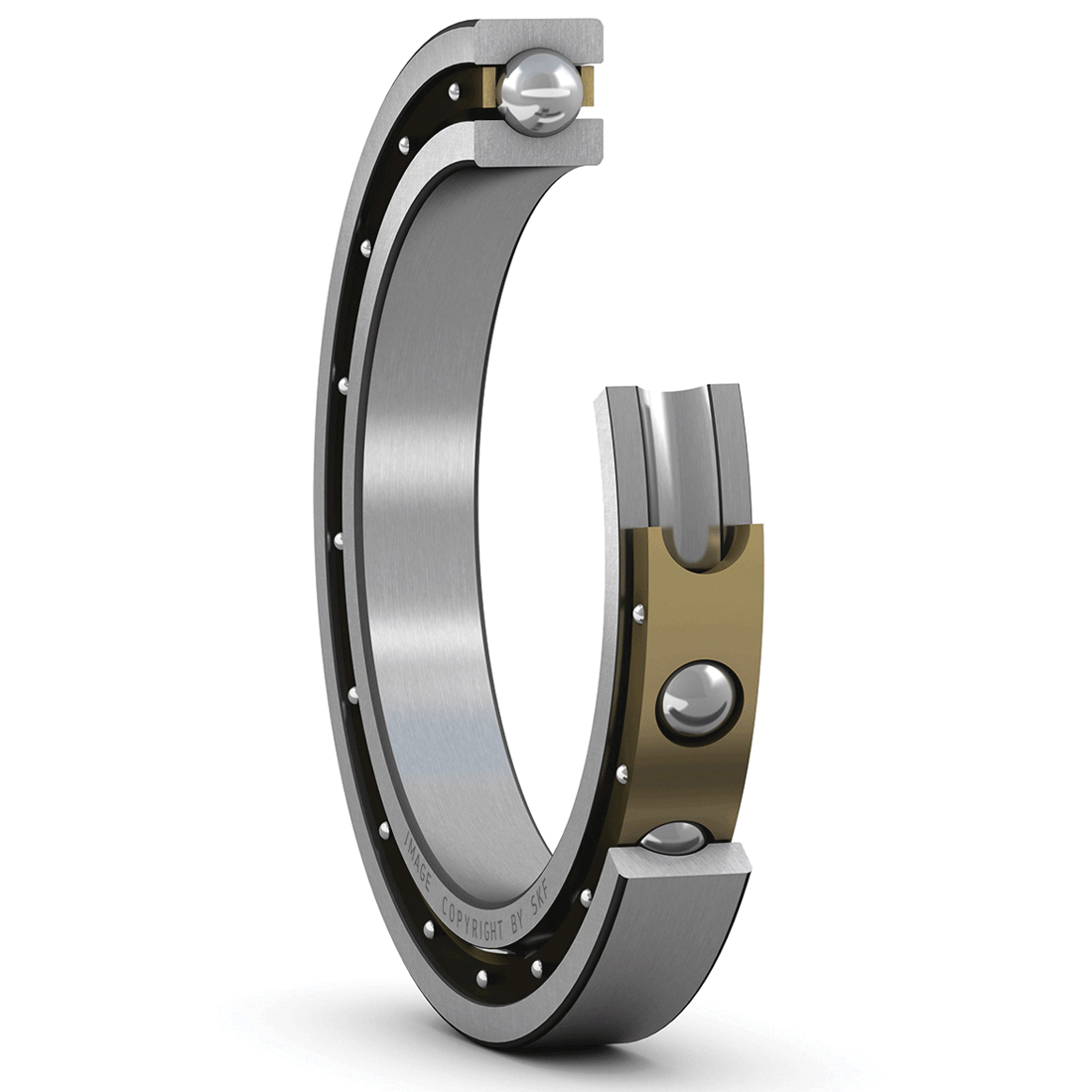

SKF® 61856 MA 61800 Series Cylindrical Bore Deep Groove Ball Bearing, 280 mm Dia Bore, 350 mm OD, 1 Row, 33 mm W, 138 kN Dynamic/200 kN Static Load
- CP#:
- Item#: 61856 MA
- Mfr#: 61856 MA
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore, Series: 61800 Series, 280 mm Bore Dia, 350 mm Outside Dia, 1 Row, 33 mm Width, Open Closure, 138 kN Dynamic/200 kN Static, Steel Bearing, Machined Brass Cage, 2800 rpm Limiting/3400 rpm Reference Maximum
SPECIFICATIONS
| Series | : | 61800 Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 138 kN Dynamic/200 kN Static |
| Maximum Speed | : | 2800 rpm Limiting/3400 rpm Reference |
| Outside Diameter | : | 350 mm |
| Number of Rows | : | 1 |
| Width | : | 33 mm |
