24096 ECA/W33

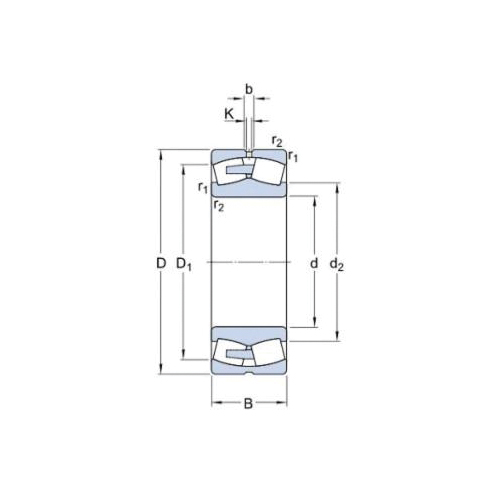

SKF® 24096 ECA/W33 Radial Spherical Roller Bearing, 480 mm Bore Dia, 700 mm OD, 2 Rows, 218 mm W, 5524 kN Dynamic/10400 kN Static
- CP#:
- Item#: 24096 ECA/W33
- Mfr#: 24096 ECA/W33
- Self-aligning
- Very high load carrying capacity
- Robust and insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads
- Easily fitted for loads in all directions
- Protect against contaminants
- Grease retention
- Minimized maintenance requirements
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Spherical Roller Bearing, Radial, Series: 240, 480 mm Bore Dia, 700 mm Outside Dia, 2 Rows, 218 mm Width, 5524 kN Dynamic/10400 kN Static, Steel Bearing, Solid Machined Cage, 750 rpm Maximum, 230 deg F
SPECIFICATIONS
| Series | : | 240 |
| Bearing Material | : | Steel |
| Load Capacity | : | 5524 kN Dynamic/10400 kN Static |
| Maximum Speed | : | 750 rpm |
| Outside Diameter | : | 700 mm |
| Number of Rows | : | 2 |
| Width | : | 218 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/124/SKF_21306_CC_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/273/SKF_24096_ECA_W33_Specification_Sheet.pdf
