SKF® 2317 M/C3
SKF®
Email Print

2317 M/C3

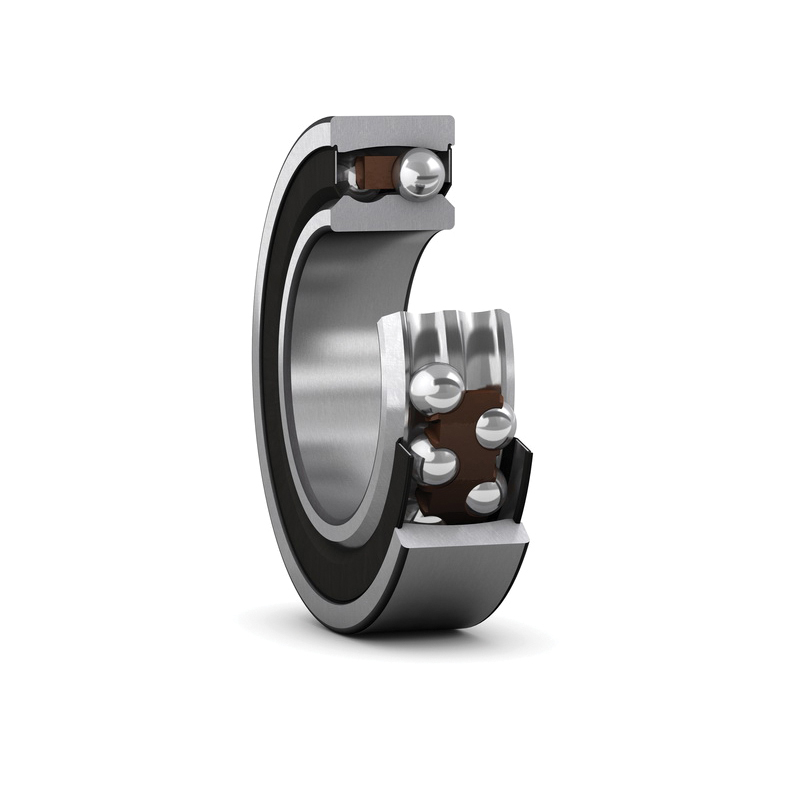

SKF® 2317 M/C3 Cylindrical Bore Self Aligning Ball Bearing, 85 mm Dia Bore, 180 mm OD, 60 mm W, 140 kN Load

  • Item#: 2317 M/C3
  • Mfr#: 2317 M/C3
    • Accommodate static and dynamic misalignment - The bearings are self aligning like spherical roller bearings or CARB bearings
    • Excellent high-speed performance - Self aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds
    • Minimum maintenance - Because of low heat generation, the bearing temperature is lower, leading to extended bearing life and maintenance intervals
    • Low friction - Very loose conformity between balls and outer ring keeps friction and frictional heat at low levels
    • Excellent light load performance - Self aligning ball bearings have low minimum load requirements
    • Low noise - Self aligning ball bearings can reduce noise and vibration levels, for example, in fans
    • 140 kN dynamic/51 kN static load
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Self aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

SKF® Self Aligning Ball Bearing, Cylindrical Bore, 85 mm Bore, 180 mm OD, 60 mm Width, Open Closure, 140 kN Load, Steel Bearing, Machined Brass Cage, 6700 rpm Maximum

SPECIFICATIONS

Bearing Material      :      Steel
Load Capacity      :      140 kN
Maximum Speed      :      6700 rpm
Outside Diameter      :      180 mm
Width      :      60 mm
