22336 CCJA/W33VA405

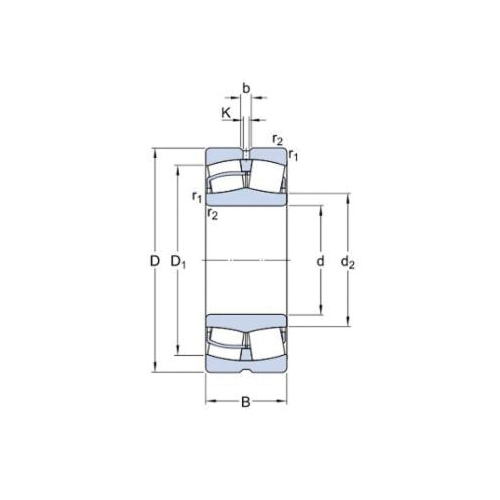

SKF® 22336 CCJA/W33VA405 Radial Spherical Roller Bearing, 180 mm Bore Dia, 380 mm OD, 2 Rows, 126 mm W, 2077 kN Dynamic/2450 kN Static
- CP#:
- Item#: 22336 CCJA/W33VA405
- Mfr#: 22336 CCJA/W33VA405
- Self-aligning
- Very high load carrying capacity
- Robust and insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads
- Easily fitted for loads in all directions
- Protect against contaminants
- Grease retention
- Minimized maintenance requirements
- W33-annular groove and three lubrication holes in the outer ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Spherical Roller Bearing, Radial, Series: 223, 180 mm Bore Dia, 380 mm Outside Dia, 2 Rows, 126 mm Width, 2077 kN Dynamic/2450 kN Static, Steel Bearing, Steel Cage, 1700 rpm Maximum, 230 deg F
SPECIFICATIONS
| Series | : | 223 |
| Bearing Material | : | Steel |
| Load Capacity | : | 2077 kN Dynamic/2450 kN Static |
| Maximum Speed | : | 1700 rpm |
| Outside Diameter | : | 380 mm |
| Number of Rows | : | 2 |
| Width | : | 126 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/124/SKF_21306_CC_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/299/SKF_22336_CCJA_W33VA405_Specification_Sheet.pdf
