22234-2CS5K/VT143

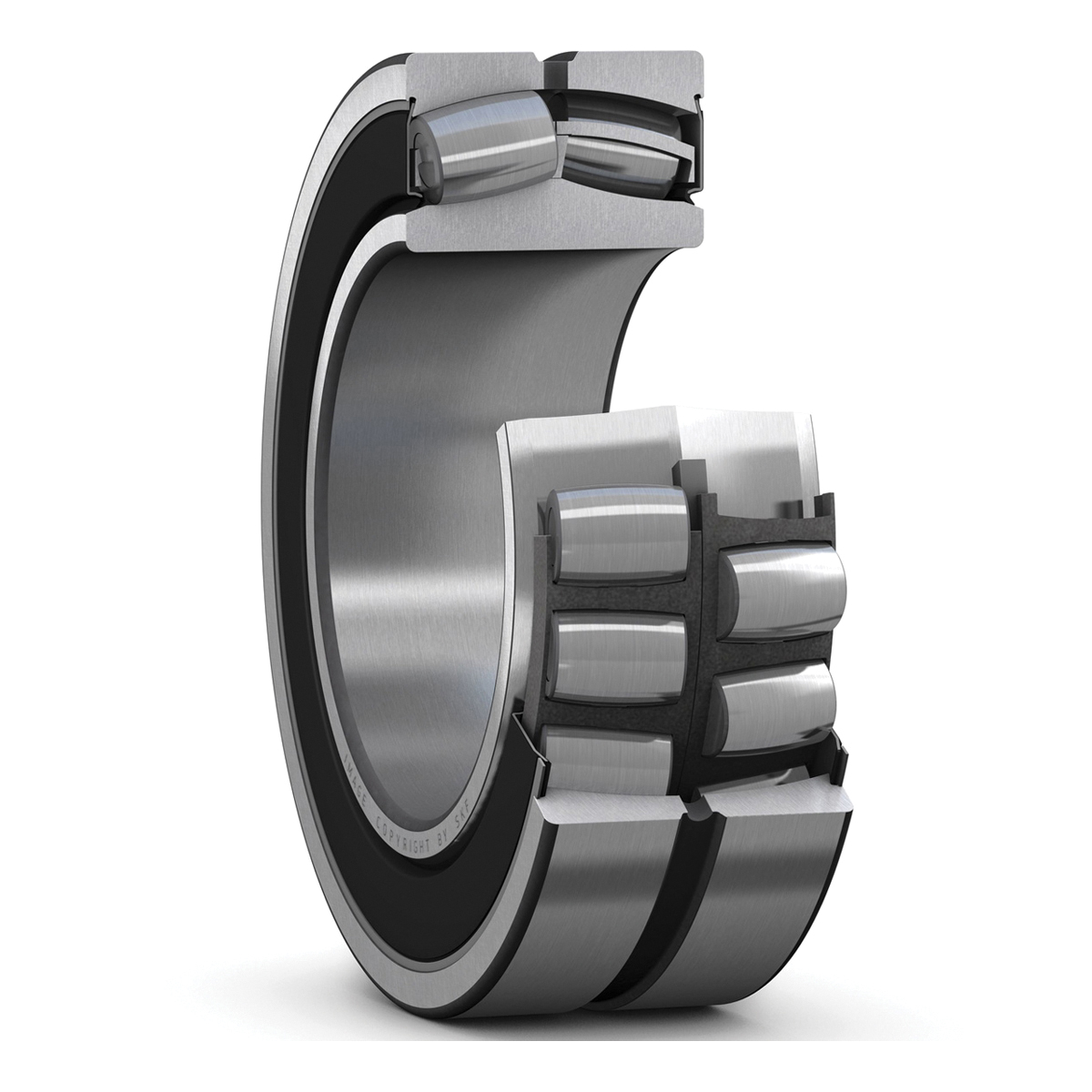

SKF® 22234-2CS5K/VT143 200 Series Tapered Bore Spherical Roller Bearing With SKF LGEP 2 Grease, 170 mm Dia Bore, 310 mm OD, 2 Rows, 86 mm W, 1185 kN Dynamic/1460 kN Static Load
- CP#:
- Item#: 22234-2CS5K/VT143
- Mfr#: 22234-2CS5K/VT143
- Accommodate misalignment - spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings
- High load carrying capacity - spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions
- Long service life - the rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set, the symmetrical rollers self-adjust providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends
- Low friction - self-guiding rollers keep friction and frictional heat at low levels, a floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position
- Robust - all SKF® spherical roller bearings contain strong window or prong-type cages
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with SKF® spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. SKF® invented this bearing type in 1919 and our range is the widest in the industry today - both open and sealed. Our assortment includes spherical roller bearings designed for many applications, including wind turbine main shafts, continuous casters, vibratory applications and high-speed applications, as well as bearings with solid oil, split bearings, SKF® ConCentra roller bearing units and for the harshest operating environments, our SKF® three-barrier solution.
SKF® Spherical Roller Bearing, Tapered Bore, Series: 200 Series, 170 mm Bore Dia, 310 mm Outside Dia, 2 Rows, 86 mm Width, Double Seal Closure, 1185 kN Dynamic/1460 kN Static, Steel Bearing, HNBR Seal, Steel Cage, 500 rpm Maximum, -40 to 300 deg F, Uncoated
SPECIFICATIONS
| Series | : | 200 Series |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 1185 kN Dynamic/1460 kN Static |
| Maximum Speed | : | 500 rpm |
| Outside Diameter | : | 310 mm |
| Number of Rows | : | 2 |
| Seal Material | : | HNBR |
| Width | : | 86 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_21305CC_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_222342CS5KVT143_Specification_Sheet.pdf
