16015/C3

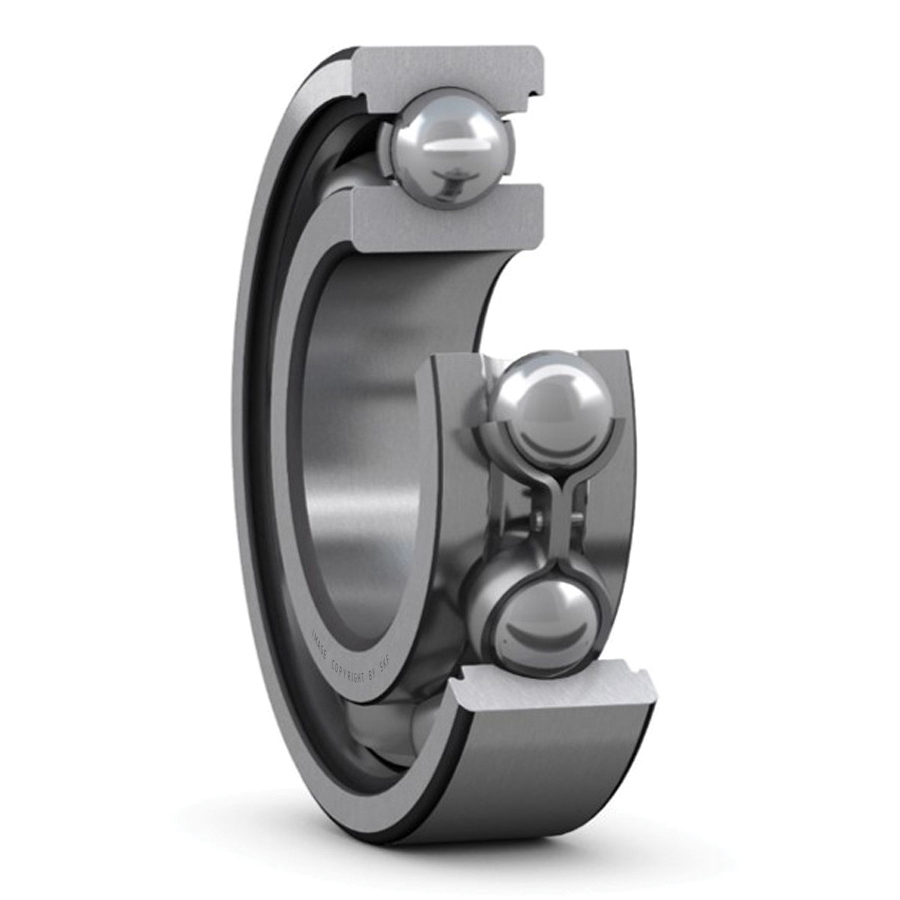

SKF® 16015/C3 1600 Series Cylindrical Bore Deep Groove Ball Bearing, 75 mm Dia Bore, 115 mm OD, 1 Row, 13 mm W, 30.2 kN Dynamic/27 kN Static Load
- CP#:
- Item#: 16015/C3
- Mfr#: 16015/C3
- Low friction and running temperatures, low noise and vibration
- High running speeds
- High quality and performance capabilities for your application
- Accommodate radial loads and axial loads in both directions
- Increased reliability and provide long bearing and lubricant service life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep Groove Ball Bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types. The SKF® bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF® Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
SKF® Deep Groove Ball Bearing, Cylindrical Bore, Series: 1600 Series, 75 mm Bore Dia, 115 mm Outside Dia, 1 Row, 13 mm Width, Open Closure, 30.2 kN Dynamic/27 kN Static, Steel Bearing, Steel Cage, 7500 rpm Limiting/12000 rpm Reference Maximum
SPECIFICATIONS
| Series | : | 1600 Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 30.2 kN Dynamic/27 kN Static |
| Maximum Speed | : | 7500 rpm Limiting/12000 rpm Reference |
| Outside Diameter | : | 115 mm |
| Number of Rows | : | 1 |
| Width | : | 13 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_16015_Specification_Sheet.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1034/SKF_210N_Warranty.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1035/SKF_604_2Z_Catalog.pdf
