MSF-48

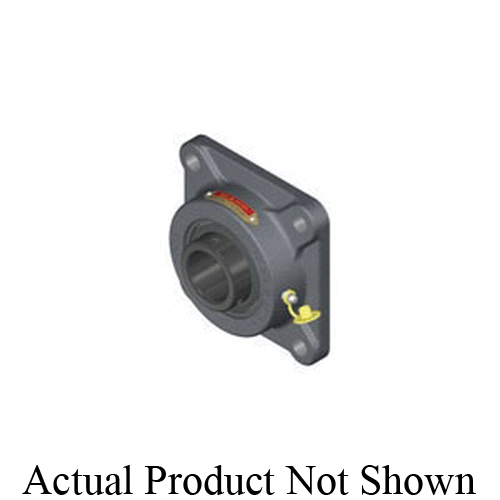

BEARING FLANGE MSF48,3" SEALMASTER
- CP#:
- Item#: MSF-48
- Mfr#: MSF-48
- UPC: 662461014691
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Stamped steel rubber mounted flange
- Solid cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Medium Duty Non-Expansion Round Straight Bore, Series: MSF, 3 in Bore, 6 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 7-3/4 in Overall Length/Diameter, 3-1/2 in Overall Depth, 7-3/4 in Overall Height, Set Screw Locking Device, Steel Bearing, Felt Seal, 17412 lb Dynamic Load, 2250 rpm Maximum, -20 to 250 deg F, Uncoated
SPECIFICATIONS
| Series | : | MSF |
| Bearing Material | : | Steel |
| Locking Device | : | Set Screw |
| Inside Diameter | : | 3 in |
| Mounted | : | Yes |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3200ZZ_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_MSF15_Specification_Sheet.pdf
