- Sealmaster® 717699
717699

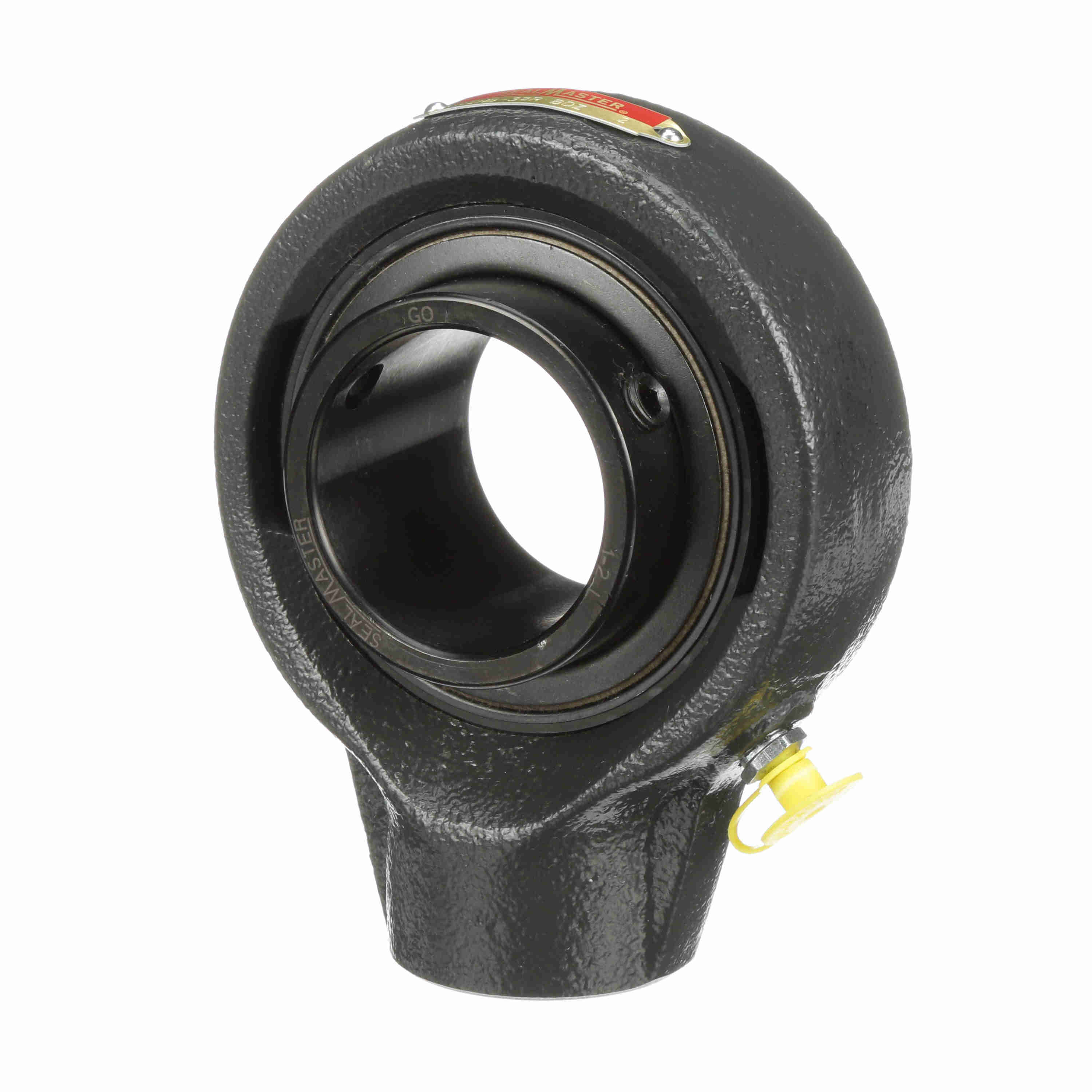

Mounted Cast Iron Hanger Unit Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Vibration Features
- CP#:
- Item#: SEHB-32R BDZ
- Mfr#: 717699
- UPC: 662461097007
-
Powder coated epoxy cast iron housing with extended inner ring bearingsZone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrewsFelt labyrinth seal and flinger for dry & dusty environmentReduced internal clearance and tight housing fit for vibratory applicationsUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.
Sealmaster® Hanger Ball Bearing Unit, Standard-Duty, Series: SEHB, 2 in Bore, 4-3/8 in OD, 2.0313 in Width, 7889 lb Dynamic/5216 lb Static Load, Set Screw Collar Locking, Cast Iron Bearing, Felt Seal, Metal Cage, 250 deg F
SPECIFICATIONS
| Series | : | SEHB |
| Bearing Material | : | Cast Iron |
| Load Capacity | : | 7889 lb Dynamic/5216 lb Static |
| Locking Type | : | Setscrew |
| Outside Diameter | : | 4-3/8 in |
| Seal Material | : | Felt |
| Inside Diameter | : | 2 in |
| Mounted | : | Yes |
| Width | : | 2.0313 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700347_Catalog.pdf
