- Sealmaster® 711201
711201

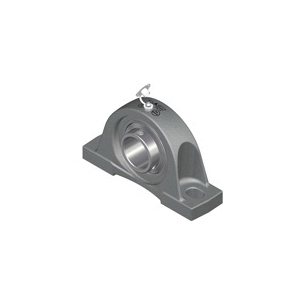

Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant
- CP#:
- Item#: CRPS-PN31
- Mfr#: 711201
- UPC: 662461337707
-
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistanceHigh performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubricationHigh quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.Solid construction with machined base was designed for minimal gaps and no fillersZone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrewsExclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Tapered Lands ensures that lubricant will be easily redirected back to the raceway.USDA H1 complaint food grade grease
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® PN gold mounted bearings feature high phosphorus, electroless nickel coated steel insert with patented seal technology available in either setscrew or Skwezloc® concentric locking collar, within a variety of 316 stainless casting high strength composite fluoropolymer coated cast iron housing configurations. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing. PN Gold mounted ball bearings provide outstanding performance in demanding corrosive environments.
Sealmaster® Pillow Block Ball Bearing Unit, Standard-Duty, Series: CRPS-PN, 1-15/16 in Bore, 6 to 6-1/2 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8-1/8 in Overall Length, 2-1/32 in Overall Width, 4-9/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-3/8 in Base Width, Set Screw Locking Device, High Performance Seal, Non-Expansion (Fixed) Expansion, 7889 lb Dynamic Load, 250 deg F, 1350 rpm Maximum, Stainless Steel, Uncoated
SPECIFICATIONS
| Base Width | : | 2-3/8 in |
| Base to Bore Centerline | : | 2-1/4 in |
| Series | : | CRPS-PN |
| Bolt Center-to-Center Length | : | 6 to 6-1/2 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 8-1/8 in |
| Load Capacity | : | 7889 lb Dynamic |
| Material | : | Stainless Steel |
| Maximum Speed | : | 1350 rpm |
| Overall Width | : | 2-1/32 in |
| Inside Diameter | : | 1-15/16 in |
| Mounted | : | Yes |
| Overall Height | : | 4-9/16 in |
| Seal Type | : | Triple Lip Contact Seal |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_711188_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Manual.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/InstallationManuals_Form_9565E.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4403/CatalogFileName_Form_MCC12004E_K-35.pdf
