- Sealmaster® 705882
705882

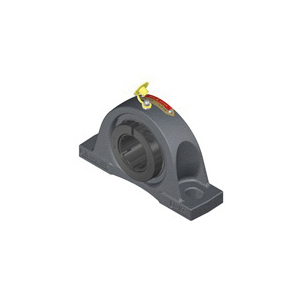

Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock
- CP#:
- Item#: NPL-27TC
- Mfr#: 705882
- UPC: 662461033623
-
Powder coated epoxy cast iron housing with extended inner ring bearingsSkwezloc® concentric locking for near perfect concentricitySingle lip contact sealUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
Sealmaster® Pillow Block Ball Bearing Unit, Standard-Duty, Series: NPL-T, 1-11/16 in Bore, 5-7/16 to 6-1/16 in Bolt Center-to-Center Length, 2-1/16 in Base to Bore Centerline, 7-1/2 in Overall Length, 2 in Overall Width, 4-3/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/8 in Base Width, Skwezloc® Concentric Collar Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 7901 lb Dynamic Load, 250 deg F, 3800 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 2-1/8 in |
| Base to Bore Centerline | : | 2-1/16 in |
| Series | : | NPL-T |
| Bolt Center-to-Center Length | : | 5-7/16 to 6-1/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Skwezloc® Concentric Collar |
| Finish | : | Uncoated |
| Overall Length | : | 7-1/2 in |
| Load Capacity | : | 7901 lb Dynamic |
| Material | : | Cast Iron |
| Maximum Speed | : | 3800 rpm |
| Overall Width | : | 2 in |
| Inside Diameter | : | 1-11/16 in |
| Mounted | : | Yes |
| Overall Height | : | 4-3/16 in |
| Seal Type | : | Single Lip Contact Seal |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_705493_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/CatalogFileName_Form_MCC12004E_G-35.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/InstallationManuals_Form_9563E.pdf
