- Sealmaster® 705686
705686

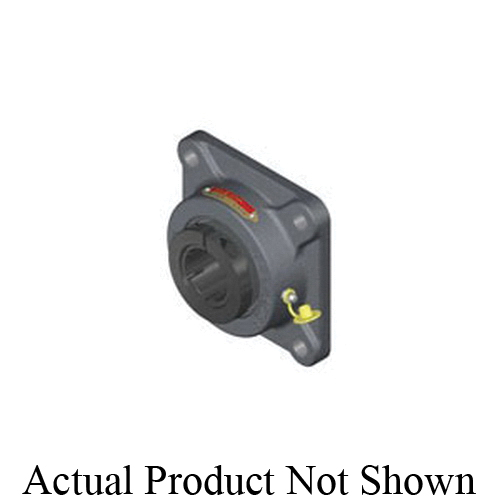

Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock
- CP#:
- Item#: MSF-32T
- Mfr#: 705686
- UPC: 662461032190
-
Powder coated epoxy cast iron housing with extended inner ring bearingsSkwezloc® concentric locking for near perfect concentricityUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard Duty, Series: MSF, 2 in Bore, 5-1/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 6-3/8 in Overall Length/Diameter, 2-3/8 in Overall Depth, 6-3/8 in Overall Height, Skwezloc® Locking Locking Device, Steel Bearing, Felt Seal, 9752 lb Dynamic/6601 lb Static Load, 4500 rpm Maximum, -20 to 250 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5-1/8 in |
| Series | : | MSF |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Skwezloc® Locking |
| Load Capacity | : | 9752 lb Dynamic/6601 lb Static |
| Maximum Speed | : | 4500 rpm |
| Overall Depth | : | 2-3/8 in |
| Overall Height | : | 6-3/8 in |
| Inside Diameter | : | 2 in |
| Overall Length/Diameter | : | 6-3/8 in |
| Mounted | : | Yes |
| Seal Material | : | Felt |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3200ZZ_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_MSF15_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/CatalogFileName_Form_MCC12004E_G-52.pdf -
Manual
https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/5520/Ball_Bearing_Installation_Manual_9563E.PDF
