705477

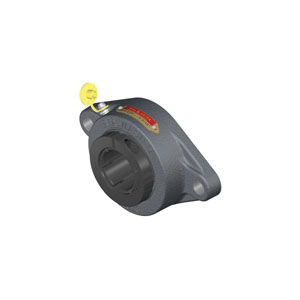

Mounted Cast Iron Two Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock
- CP#:
- Item#: SFT-12T
- Mfr#: 705477
- UPC: 662461030325
-
Powder coated epoxy cast iron housing with extended inner ring bearingsSkwezloc® concentric locking for near perfect concentricityFelt labyrinth seal and flinger for dry & dusty environmentUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

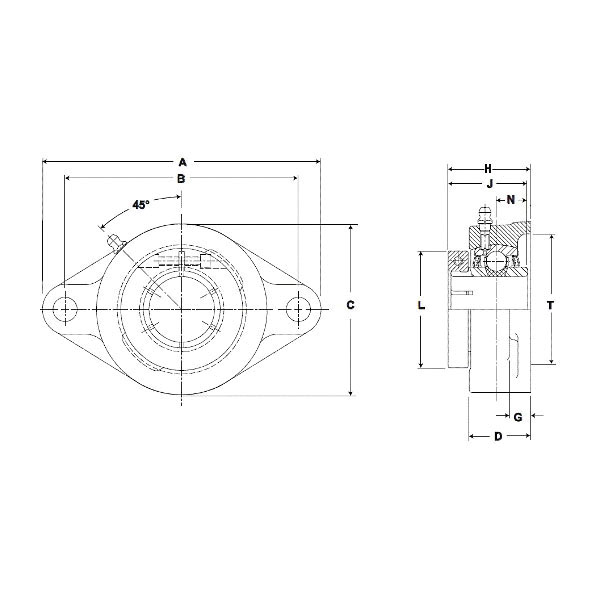

Sealmaster® Ball Bearing Unit, Non-Expansion Round Bore Standard Duty, Series: SFT-T, 3/4 in Bore, 3-17/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-13/32 in Overall Length/Diameter, 1-11/32 in Overall Depth, 2-3/8 in Overall Height, Skwezloc® Collar Locking Device, 52100 Steel Bearing, Felt Seal, 2611 lb Dynamic/1444 lb Static Load, 220 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-17/32 in |
| Series | : | SFT-T |
| Bearing Material | : | 52100 Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Skwezloc® Collar |
| Load Capacity | : | 2611 lb Dynamic/1444 lb Static |
| Overall Depth | : | 1-11/32 in |
| Overall Height | : | 2-3/8 in |
| Inside Diameter | : | 3/4 in |
| Overall Length/Diameter | : | 4-13/32 in |
| Mounted | : | Yes |
| Seal Material | : | Felt |
