705368

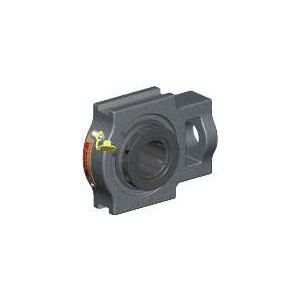

Mounted Cast Iron Wide Slot Take Up Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock
- CP#:
- Item#: MST-31T
- Mfr#: 705368
- UPC: 662461029589
-
Powder coated epoxy cast iron housing with extended inner ring bearingsSkwezloc® concentric locking for near perfect concentricityUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Take-Up Ball Bearing Unit, Medium Duty Non-Expansion Wide Slot, Series: MST, 1-15/16 in Bore, 6-3/4 in Length, 2-1/4 in Width, 5-3/4 in Height, 5782 lb Dynamic Load, For Use With: MSTH-31T Center Pull Take Up Frame, Steel Bearing, 250 deg F, Uncoated
SPECIFICATIONS
| Series | : | MST |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Height | : | 5-3/4 in |
| Length | : | 6.75 in |
| Load Capacity | : | 5782 lb Dynamic |
| Suitable For Use With | : | MSTH-31T Center Pull Take Up Frame |
| Inside Diameter | : | 1-15/16 in |
| Mounted | : | Yes |
| Width | : | 2-1/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700495_Catalog.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/CatalogFileName_Form_MCC12004E_G-75.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/InstallationManuals_Form_9563E.pdf
