- Sealmaster® 701799
701799

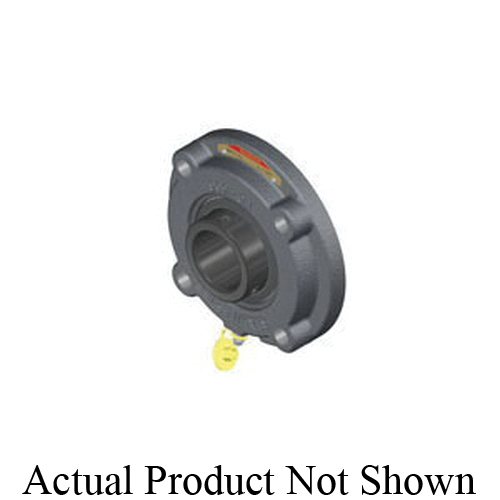

Mounted Cast Iron Flange Cartridge Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock
- CP#:
- Item#: MFC-20
- Mfr#: 701799
- UPC: 662461013342
-
Powder coated epoxy cast iron housing with extended inner ring bearingsZone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrewsUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Medium Duty Non-Expansion Round Straight Bore, Series: MFC, 1-1/4 in Bore, 4-1/8 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 5 in Overall Length/Diameter, 1-5/16 in Overall Depth, Set Screw Locking Device, Steel Bearing, Felt Seal, 5782 lb Dynamic/3493 lb Static Load, 4650 rpm Maximum, -20 to 250 deg F, Uncoated
SPECIFICATIONS
| Series | : | MFC |
| Bolt Circle Diameter | : | 4-1/8 in |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Maximum Speed | : | 4650 rpm |
| Overall Depth | : | 1-5/16 in |
| Inside Diameter | : | 1-1/4 in |
| Overall Length/Diameter | : | 5 in |
| Mounted | : | Yes |
| Seal Material | : | Felt |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_MFC15_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_SFC19_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/CatalogFileName_Form_MCC12004E_G-61.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/InstallationManuals_Form_9563E.pdf
