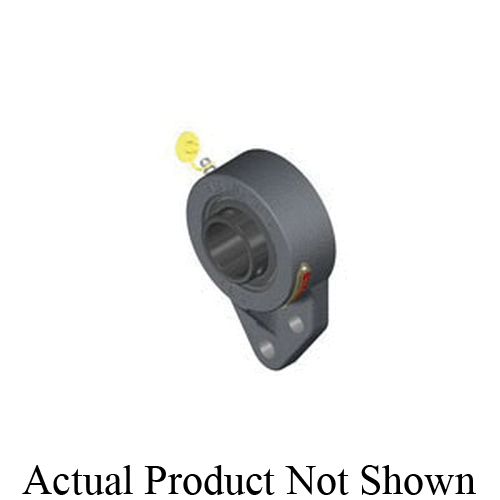

Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard-Duty, Series: FB Series, 1-1/4 in Bore, 2-3/4 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 1-7/8 in Overall Length/Diameter, 1-5/8 in Overall Depth, 3-3/4 in Overall Height, Set Screw Locking Device, Steel Bearing, Felt Seal, 4381 lb Dynamic/2567 lb Static Load, 5450 rpm Maximum, -20 to 220 deg F, Uncoated
Type | : | Non-Expansion Round Straight Standard-Duty |
Bolt Center-to-Center Length | : | 2-3/4 in |
Series | : | FB Series |
Bearing Material | : | Steel |
Finish | : | Uncoated |
Flange Mounting Type | : | 3-Bolt |
Locking Device | : | Set Screw |
Load Capacity | : | 4381 lb Dynamic/2567 lb Static |
Maximum Speed | : | 5450 rpm |
Overall Depth | : | 1-5/8 in |
Overall Height | : | 3-3/4 in |
Inside Diameter | : | 1-1/4 in |
Overall Length/Diameter | : | 1-7/8 in |
Mounted | : | Yes |
Seal Material | : | Felt |
Temperature Rating | : | -20 to 220 deg F |
