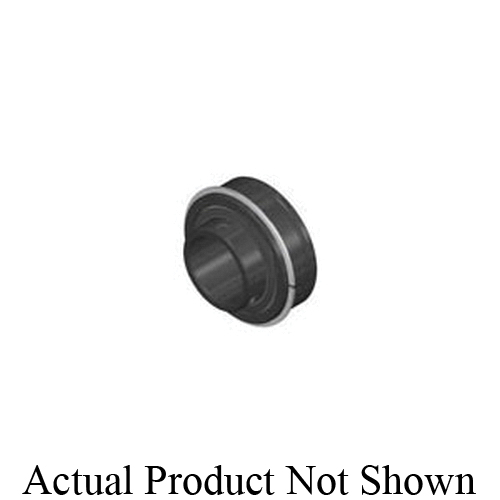

Sealmaster® 701055 ER Series Non-Expansion Standard Duty Straight Bore Ball Bearing Insert With Snap Ring, 7/8 in Dia Bore, 2.0472 in OD, 1 Rows, 1-3/8 in W, 2801 lb Dynamic/1651 lb Static Load
- CP#:
- Item#: ER-14
- Mfr#: 701055
- UPC: 662461008539
- The Sealmaster® ER bearings outer ring is black oxide and comes standard with a locating ring and lubrication groove and lubrication inlet
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
- Relube through outer ring groove
- Balance three point contact and minimizes inner ring distortion vibration
- Reduces noise and improves reliability
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER Series, 7/8 in Bore, 2.0472 in OD, 1 Rows, 1-3/8 in Width, Double Seal Closure, 2801 lb Dynamic/1651 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 6350 rpm Maximum, -20 to 220 deg F, Black Oxide Coated
SPECIFICATIONS
| Series | : | ER Series |
| Bearing Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 2801 lb Dynamic/1651 lb Static |
| Maximum Speed | : | 6350 rpm |
| Outside Diameter | : | 2.0472 in |
| Number of Rows | : | 1 |
| Seal Material | : | Felt |
| Inside Diameter | : | 7/8 in |
| Mounted | : | Yes |
| Width | : | 1-3/8 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_ER8_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
