Sealmaster® 700949
Sealmaster®

Sealmaster® 700949

loading
Sealmaster®

700949

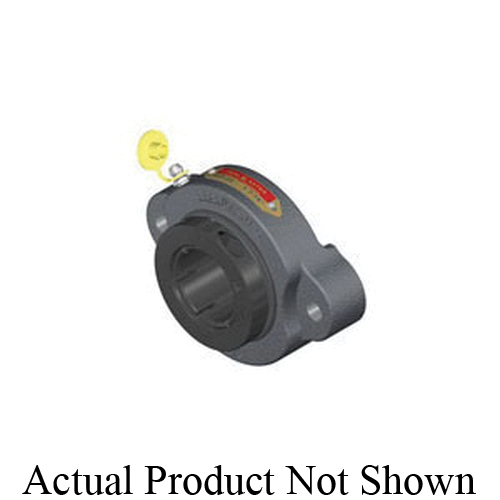

Mounted Cast Iron Two Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock

  • Item#: TFT-16TC-1
  • Mfr#: 700949
  • UPC: 662461007860
    Powder coated epoxy cast iron housing with extended inner ring bearingsSkwezloc® concentric locking for near perfect concentricitySingle lip contact sealUnique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Standard-Duty, Series: TFT, 1 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-1/2 in Overall Depth, 2-3/4 in Overall Height, Skwezloc® Locking Locking Device, Steel Bearing, Nitrile rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 6350 rpm Maximum, -20 to 220 deg F, Uncoated

SPECIFICATIONS

Bolt Center-to-Center Length      :      3 in
Bearing Material      :      Steel
Finish      :      Uncoated
Flange Mounting Type      :      2-Bolt
Locking Device      :      Skwezloc® Locking
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Maximum Speed      :      6350 rpm
Bore Diameter      :      1 in
Overall Depth      :      1-1/2 in
Overall Height      :      2-3/4 in
Overall Length/Diameter      :      3-3/4 in
Mounted      :      Yes
Seal Material      :      Nitrile rubber
Series      :      TFT
Temperature Rating      :      -20 to 220 deg F
Type      :      Non-Expansion Standard-Duty

DOCUMENTS

  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3200ZZ_Manual.pdf
  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_TFT15TC1ARZ_Specification_Sheet.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/CatalogFileName_Form_MCC12004E_G-83.pdf
