700052

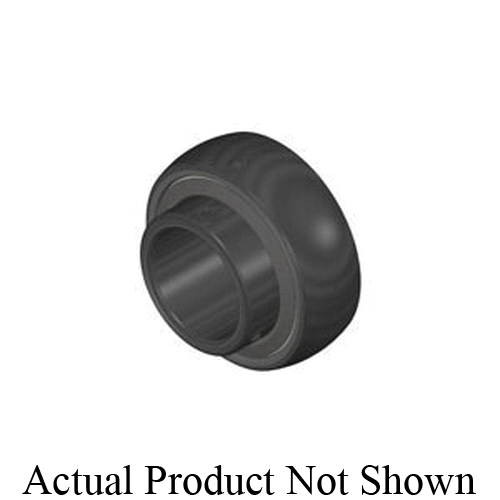

Sealmaster® 700052 Non-Expansion Standard Duty Straight Bore Ball Bearing Insert, 2-15/16 in Dia Bore, 5.1181 in OD, 3-1/16 in W, 14839 lb Dynamic/11224 lb Static Load
- CP#:
- Item#: 2-215
- Mfr#: 700052
- UPC: 662461000496
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, 2-15/16 in Bore, 5.1181 in OD, 3-1/16 in Width, Double Seal Closure, 14839 lb Dynamic/11224 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 2450 rpm Maximum, -20 to 220 deg F, Black Oxide Coated
SPECIFICATIONS
| Bearing Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 14839 lb Dynamic/11224 lb Static |
| Maximum Speed | : | 2450 rpm |
| Outside Diameter | : | 5.1181 in |
| Seal Material | : | Felt |
| Inside Diameter | : | 2-15/16 in |
| Mounted | : | Yes |
| Width | : | 3-1/16 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_114_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
