556667

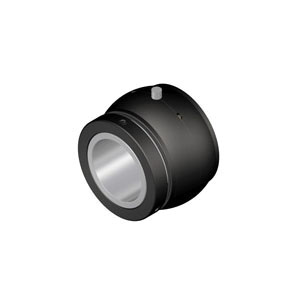

Sealmaster® 556667 Non-Expansion Replacement Cartridge Insert, 5 in Dia Bore, 8.563 in OD, 7-1/4 in W, 35520 lb Dynamic Load

  • Item#: RCIA 500C
  • Mfr#: 556667
  • UPC: 662461294529
  • Single lip race mounted contact seals for dry, dirty and wet conditions
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The heart of the RPB is the unitized, self-aligning cartridge insert with integral seals and double locking collars. The replaceable cartridge insert can accommodate +/- 3 deg static misalignment and is factory sealed and lubricated. The cartridges fit all housing styles and are field replaceable for quick change out. RCI outer races are black oxide treated.

Sealmaster® Replacement Cartridge Insert, Non-Expansion, Series: RCIA, 5 in Bore, 8.563 in OD, 7-1/4 in Width, 35520 lb Dynamic Load, Steel Bearing, Rubber Seal, 1000 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

SPECIFICATIONS

Series      :      RCIA
Bearing Material      :      Steel
Finish      :      Black Oxide Coated
Load Capacity      :      35520 lb Dynamic
Maximum Speed      :      1000 rpm
Outside Diameter      :      8.563 in
Seal Material      :      Rubber
Inside Diameter      :      5 in
Mounted      :      Yes
Width      :      7-1/4 in
