550229

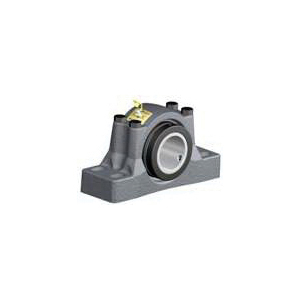

Sealmaster® 550229 RPB Standard-Duty Pillow Block Roller Bearing Unit With Seal Flinger, 4-7/16 in Dia Bore, 11-3/4 to 13-7/8 in L Bolt Center-to-Center, 4-3/4 in Base to Bore Centerline, 16-1/2 in OAL x 9-5/8 in OAH
- CP#:
- Item#: RPB 407-4
- Mfr#: 550229
- UPC: 662288480143
- Durable cast iron split housing
- Replaceable cartridge insert
- Positive lubrication system
- Collar mount system
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive type E bearings. The exclusive features include unitized replaceable inserts, self-aligning capability and split housing. They also include the Sealmaster® alignment pin. This provides a direct path for lubrication into the bearing and helps to prevent outer race rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provide a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric. They provide a wide variety of housing, sealing and lubrication options.
Sealmaster® Pillow Block Roller Bearing Unit, Standard-Duty, Series: RPB, 4-7/16 in Bore, 11-3/4 to 13-7/8 in Bolt Center-to-Center Length, 4-3/4 in Base to Bore Centerline, 16-1/2 in Overall Length, 6-3/4 in Overall Width, 9-5/8 in Overall Height, Four-Bolt Base Mounting, Round/Tapered Bore, 4-5/8 in Base Width, Double Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 25750 lb Dynamic Load, 250 deg F, 1250 rpm Maximum, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 4-5/8 in |
| Base to Bore Centerline | : | 4-3/4 in |
| Series | : | RPB |
| Bolt Center-to-Center Length | : | 11-3/4 to 13-7/8 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Double Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 16-1/2 in |
| Load Capacity | : | 25750 lb Dynamic |
| Material | : | Cast Iron |
| Maximum Speed | : | 1250 rpm |
| Overall Width | : | 6-3/4 in |
| Inside Diameter | : | 4-7/16 in |
| Mounted | : | Yes |
| Overall Height | : | 9-5/8 in |
| Seal Type | : | Felt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_551535_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_551535_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_555392_Specification_Sheet.pdf
