- Sealmaster® 1490801000
1490801000

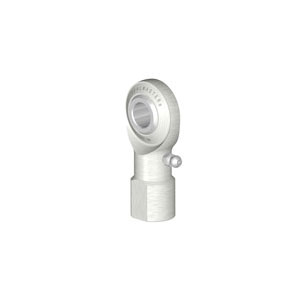

Sealmaster® 1490801000 2-Piece Commercial Grade General Purpose Bearing Rod End With Zerk Grease Fitting, 1/2 in Dia Bore, 1.312 in OD, 3/4 in W, 9000 lb Static Load, Carbon Steel
- CP#:
- Item#: CFF 8N
- Mfr#: 1490801000
- UPC: 662288724780
- Machined carbon steel housings with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- 2-piece construction has a greater housing cross section and increased load capacity than three piece rod ends with like housing materials
- Provides a lower cost alternative to the precision grade three piece rod ends with like housing material
- Right hand internal thread
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

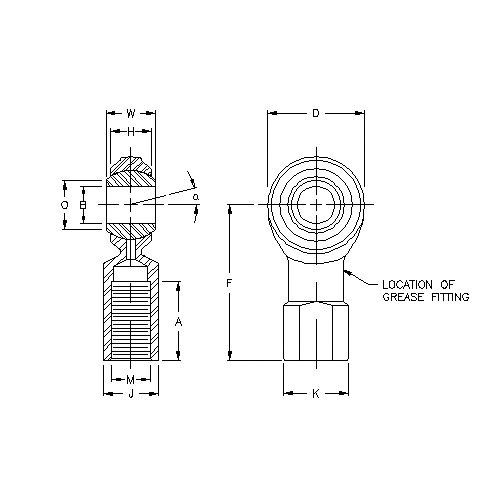

Sealmaster® Bearing Rod End, 2-Piece Commercial Grade General Purpose, Series: CFF-N, 1/2 in Bore, 1.312 in OD, 3/4 in Width, Female UNF Thread, 1/2-20 Dia x 1.031 in L Thread, 2-1/8 in Center Line Length, 9000 lb Static Load, 350 deg F, Carbon Steel
SPECIFICATIONS
| Center Line Length | : | 2-1/8 in |
| Series | : | CFF-N |
| Load Capacity | : | 9000 lb Static |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1.312 in |
| Thread Size | : | 1/2-20 Dia x 1.031 in L |
| Inside Diameter | : | 1/2 in |
| Thread Type | : | Female UNF |
| Mounted | : | Yes |
| Width | : | 3/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1410308000_Catalog.pdf
