- Sealmaster® 1430500000
1430500000

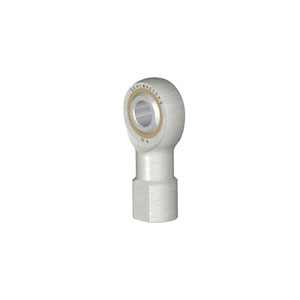

Sealmaster® 1430500000 3-Piece Commercial Grade General Purpose Bearing Rod End, 5/16 in Dia Bore, 7/8 in OD, 0.437 in W, 3350 lb Static Load, Carbon Steel
- CP#:
- Item#: TF 5
- Mfr#: 1430500000
- UPC: 662288723486
- Machined carbon steel housings with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- Designed with 1-piece bronze race for lower coefficient of friction
- Right hand internal thread
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

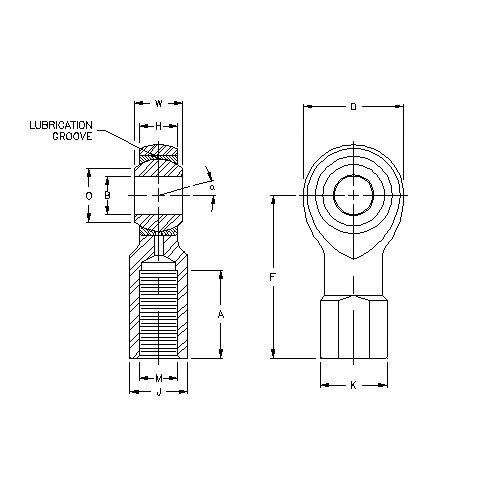

Sealmaster® Bearing Rod End, 3-Piece Commercial Grade General Purpose, Series: TF Series, 5/16 in Bore, 7/8 in OD, 0.437 in Width, Female UNF Thread, 5/16-24 Dia x 0.719 in L Thread, 1-3/8 in Center Line Length, 3350 lb Static Load, 350 deg F, Carbon Steel
SPECIFICATIONS
| Center Line Length | : | 1-3/8 in |
| Series | : | TF Series |
| Load Capacity | : | 3350 lb Static |
| Material | : | Carbon Steel |
| Outside Diameter | : | 7/8 in |
| Thread Size | : | 5/16-24 Dia x 0.719 in L |
| Inside Diameter | : | 5/16 in |
| Thread Type | : | Female UNF |
| Mounted | : | Yes |
| Width | : | 0.437 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1410308000_Catalog.pdf
