Sealmaster®
1410501000

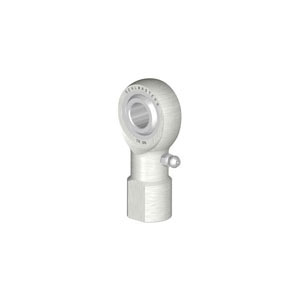

Sealmaster® 1410501000 3-Piece Precision Grade General Purpose Bearing Rod End With Zerk Grease Fitting, 5/16 in Dia Bore, 7/8 in OD, 0.437 in W, 3350 lb Static Load, Carbon Steel
- Item#: TR 5N
- Mfr#: 1410501000
- UPC: 662288719854
- 3-piece construction to help reduce pound-out in applications with high frequency oscillation, vibration or shock loading
- 1-piece carbon steel outer race with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- Right hand internal thread
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

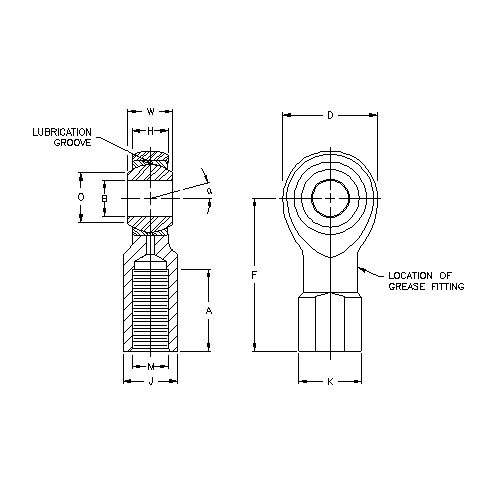

Sealmaster® Bearing Rod End, 3-Piece Precision Grade General Purpose, Series: TR-N, 5/16 in Bore, 7/8 in OD, 0.437 in Width, Female UNF Thread, 5/16-24 Dia x 0.719 in L Thread, 1-3/8 in Center Line Length, 3350 lb Static Load, 350 deg F, Carbon Steel
SPECIFICATIONS
| Type | : | 3-Piece Precision Grade General Purpose |
| Center Line Length | : | 1-3/8 in |
| Series | : | TR-N |
| Load Capacity | : | 3350 lb Static |
| Material | : | Carbon Steel |
| Outside Diameter | : | 7/8 in |
| Temperature Rating | : | 350 deg F |
| Thread Size | : | 5/16-24 Dia x 0.719 in L |
| Inside Diameter | : | 5/16 in |
| Thread Type | : | Female UNF |
| Mounted | : | Yes |
| Width | : | 0.437 in |
