WHT8505-24

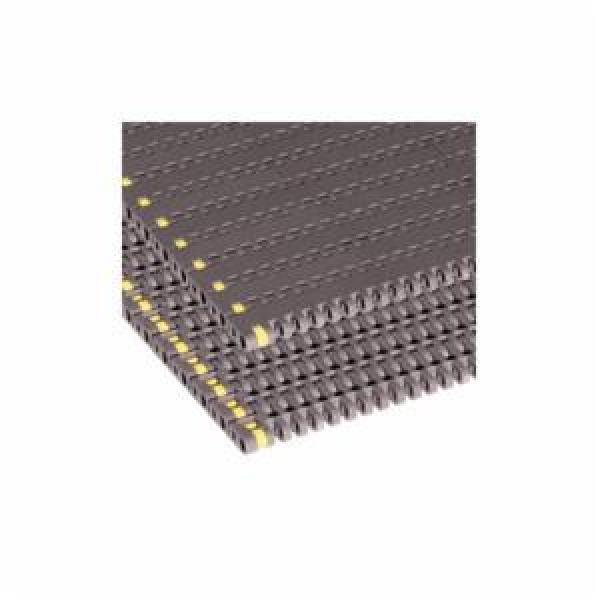

Rexnord® MatTop® WHT8505-24 8500 Straight Running Conveyor Chain With Polypropylene Pin, 10 ft OAL, 3/4 in Pitch, 24 in W x 0.34 in THK Plate, Polypropylene
- CP#:
- Item#: WHT8505-24
- Mfr#: WHT8505-24
- UPC: 793699348538
- Engineered for a wide range of conveyor applications for many industries
- Continuous conveying surface for greater-width-requirement MatTop® chain applications
- Reduce container tipping and jams at transfer points
- Straight-running for ease of installation, reduced floor space
- WHT polypropylene formulated for high-temperature and general applications in both wet and dry conditions
- Excellent chemical resistance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
8500 series chains are 3/4 in pitch and are 0.34 in H. Solid top chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 8500 series sprockets for true chain/sprocket interaction.
Rexnord® MatTop® Conveyor Chain, Straight Running, Series: 8500, 3/4 in Pitch, 24 in Plate Width, 0.34 in Plate Thickness, 1 in Minimum Back-Flex Radius, 900 ft-lb Tensile Strength, 10 ft Overall Length, Polypropylene, White
SPECIFICATIONS
| Series | : | 8500 |
| Overall Length | : | 10 ft |
| Pitch | : | 3/4 in |
| Material | : | Polypropylene |
| Finish | : | White |
| Type | : | Straight Running |
| Minimum Back-flex Radius | : | 1 in |
| Tensile Strength | : | 900 ft-lb |
| Plate Width | : | 24 in |
| Plate Thickness | : | 0.34 in |
