ZT22100

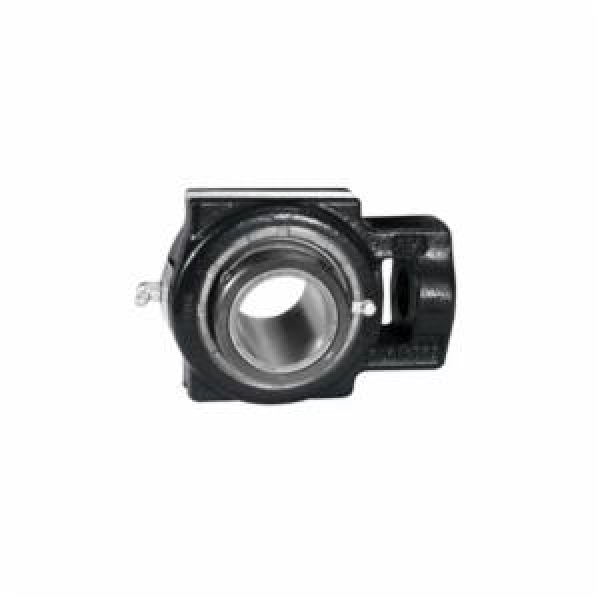

Rex® ZT22100 2000 Normal Duty Take-Up Spherical Roller Bearing Unit, 1 in Dia Bore, 4-1/16 in L x 2-9/16 in W x 3-5/8 in H, 15320 lb Dynamic/14900 lb Static Load
- CP#:
- Item#: ZT22100
- Mfr#: ZT22100
- UPC: 698210183103
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with our standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Full bore contact for maximum shaft holding power, concentricity and running accuracy
- Simplest installation
- Most economical
- Corrosion-resistant powder coating
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Single setscrew locking collar
- Type Z clearance seal
- Size code 22
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Take-Up Spherical Roller Bearing Unit, Normal Duty, Series: 2000, 1 in Bore Dia, 4-1/16 in Length, 2-9/16 in Width, 3-5/8 in Height, 15320 lb Dynamic/14900 lb Static Load, 225 deg F, Powder Coated
SPECIFICATIONS
| Series | : | 2000 |
| Finish | : | Powder Coated |
| Height | : | 3-5/8 in |
| Length | : | 4-1/16 in |
| Load Capacity | : | 15320 lb Dynamic/14900 lb Static |
| Inside Diameter | : | 1 in |
| Mounted | : | Yes |
| Width | : | 2-9/16 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_11KB204N_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_2012U_Manual.pdf -
