ZEP5307F

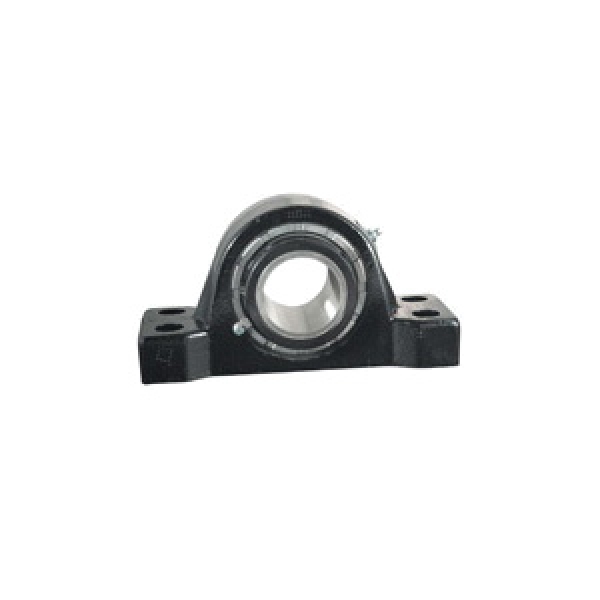

Rex® ZEP5307F 5000 Heavy Duty Pillow Block Spherical Roller Bearing, 3-7/16 in Dia Bore, 10-5/16 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13-13/16 in OAL x 7-1/2 in OAH
- CP#:
- Item#: ZEP5307F
- Mfr#: ZEP5307F
- UPC: 698210020330
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Increased shaft holding power and stability
- Moderate cost
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Field interchangeable seals
- Type E interchange
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Pillow Block Spherical Roller Bearing, Heavy Duty, Series: 5000, 3-7/16 in Bore, 10-5/16 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 13-13/16 in Overall Length, 5-5/16 in Overall Width, 7-1/2 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-3/4 in Base Width, Double Set Screw Collar Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 84330 lb Dynamic/90700 lb Static Load, 225 deg F, 2400 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 4-3/4 in |
| Base to Bore Centerline | : | 3-3/4 in |
| Series | : | 5000 |
| Bolt Center-to-Center Length | : | 10-5/16 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Double Set Screw Collar |
| Finish | : | Powder Coated |
| Overall Length | : | 13-13/16 in |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 2400 rpm |
| Overall Width | : | 5-5/16 in |
| Inside Diameter | : | 3-7/16 in |
| Mounted | : | Yes |
| Overall Height | : | 7-1/2 in |
| Seal Type | : | Clearance |
