ZBR5415

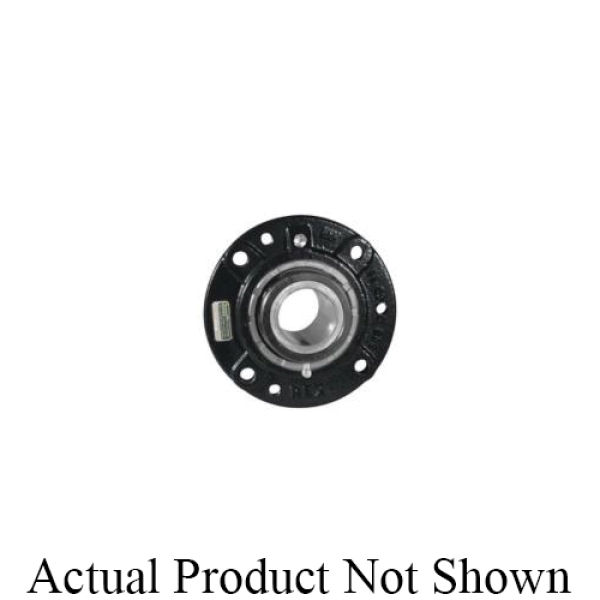

Rex® ZBR5415 5000 Fixed Heavy Duty Flanged Cartridge Block Spherical Roller Bearing, 4-15/16 in Dia Bore, 6-3/8 in L Bolt Center-to-Center, 6-3/8 in Dia Bolt Circle, 6-Bolt Round Flange Mount, 14-3/4 in OAL/Dia
- CP#:
- Item#: ZBR5415
- Mfr#: ZBR5415
- UPC: 698210637705
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Increased shaft holding power and stability
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Flanged Cartridge Block Spherical Roller Bearing, Fixed Heavy Duty, Series: 5000, 4-15/16 in Bore, 6-3/8 in Bolt Center-to-Center Length, 6-3/8 in Diameter Bolt Circle, 6-Bolt Round Flange Mounting, 14-3/4 in Overall Length/Diameter, 7-7/8 in Overall Depth, Double Set Screw Collar Locking Device, Metal Seal, 191100 lb Dynamic/241900 lb Static Load, 1600 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6-3/8 in |
| Series | : | 5000 |
| Bolt Circle Diameter | : | 6-3/8 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 6-Bolt Round |
| Locking Device | : | Double Set Screw Collar |
| Load Capacity | : | 191100 lb Dynamic/241900 lb Static |
| Maximum Speed | : | 1600 rpm |
| Overall Depth | : | 7-7/8 in |
| Inside Diameter | : | 4-15/16 in |
| Overall Length/Diameter | : | 14-3/4 in |
| Mounted | : | Yes |
| Seal Material | : | Metal |
