ZBR2303

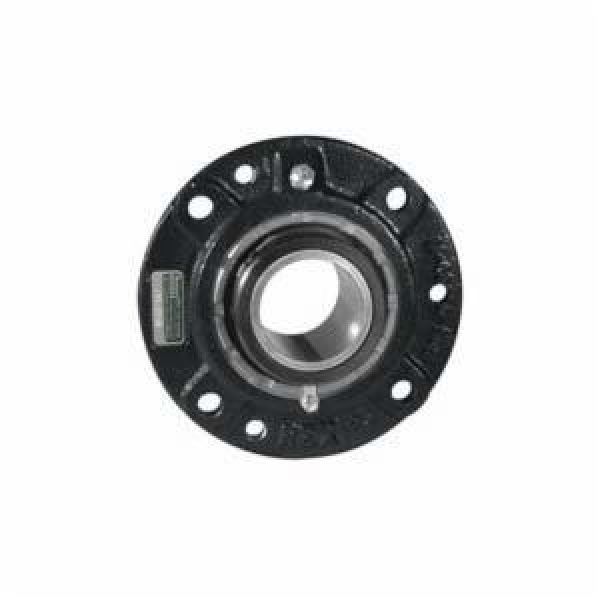

Rex® ZBR2303 2000 Fixed Normal Duty Flanged Cartridge Block Spherical Roller Bearing, 3-3/16 in Dia Bore, 6-3/32 in L Bolt Center-to-Center, 4-5/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 10-1/4 in OAL/Dia
- CP#:
- Item#: ZBR2303
- Mfr#: ZBR2303
- UPC: 698210177805
- Easy bearing clearance adjustment
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running and quiet, high-speed and high-load capacity bearing
- Shaft ready and rugged housing
- Type Z clearance seal
- Factory set clearance and lubrication
- Simplest installation
- Most economical
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Bearings represent the continuation of 80 years of bearing technology and experience. This design allows the inner race to misalign freely in any direction up to 4 deg of total misalignment. By design, Rex® Bearings accept both radial and thrust loads under static, oscillatory or dynamic conditions. The load is taken on the roller raceways, not the roller ends. This means that when thrust is loaded up to their allowable limit, Rex® Bearings do not exhibit roller end wear.
Rex® Flanged Cartridge Block Spherical Roller Bearing, Fixed Normal Duty, Series: 2000, 3-3/16 in Bore, 6-3/32 in Bolt Center-to-Center Length, 4-5/16 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 10-1/4 in Overall Length/Diameter, 4-3/8 in Overall Depth, Single Set Screw Collar Locking Device, Cast Iron Bearing, Metal Seal, 84330 lb Dynamic/90700 lb Static Load, 2400 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6-3/32 in |
| Series | : | 2000 |
| Bolt Circle Diameter | : | 4-5/16 in |
| Bearing Material | : | Cast Iron |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Single Set Screw Collar |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Maximum Speed | : | 2400 rpm |
| Overall Depth | : | 4-3/8 in |
| Inside Diameter | : | 3-3/16 in |
| Overall Length/Diameter | : | 10-1/4 in |
| Mounted | : | Yes |
| Seal Material | : | Metal |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Manual.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Warranty.pdf -
