ZBR2208

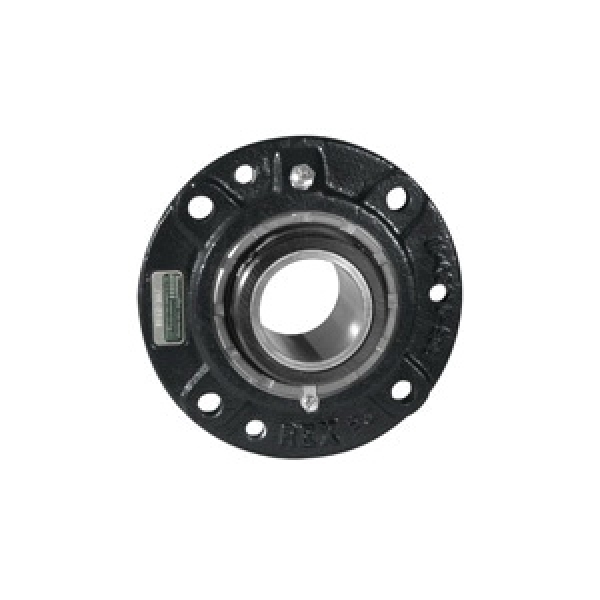

Rex® ZBR2208 2000 Fixed Normal Duty Flanged Cartridge Block Spherical Roller Bearing, 2-1/2 in Dia Bore, 4-19/32 in L Bolt Center-to-Center, 3-1/4 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 7-5/8 in OAL/Dia
- CP#:
- Item#: ZBR2208
- Mfr#: ZBR2208
- UPC: 698210177409
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Simplest installation
- Most economical
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Flanged Cartridge Block Spherical Roller Bearing, Fixed Normal Duty, Series: 2000, 2-1/2 in Bore, 4-19/32 in Bolt Center-to-Center Length, 3-1/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 7-5/8 in Overall Length/Diameter, 3-1/2 in Overall Depth, Single Set Screw Collar Locking Device, Metal Seal, 43240 lb Dynamic/53500 lb Static Load, 3300 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4-19/32 in |
| Series | : | 2000 |
| Bolt Circle Diameter | : | 3-1/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Single Set Screw Collar |
| Load Capacity | : | 43240 lb Dynamic/53500 lb Static |
| Maximum Speed | : | 3300 rpm |
| Overall Depth | : | 3-1/2 in |
| Inside Diameter | : | 2-1/2 in |
| Overall Length/Diameter | : | 7-5/8 in |
| Mounted | : | Yes |
| Seal Material | : | Metal |
