ZA6307

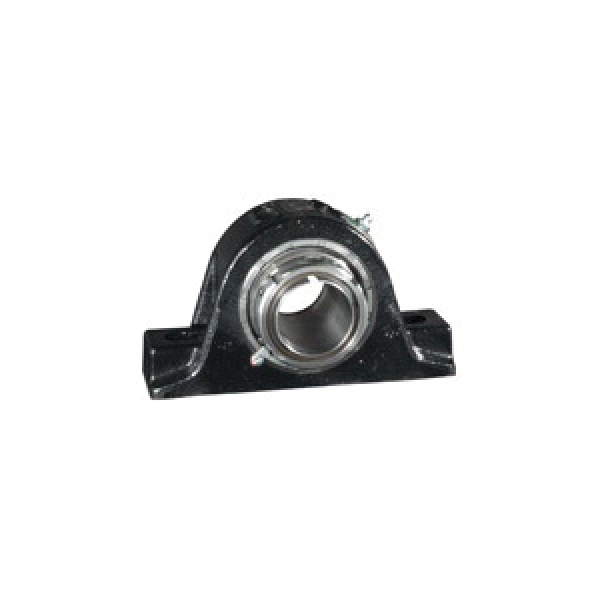

Rex® ZA6307 6000 Heavy Duty Pillow Block Spherical Roller Bearing, 3-7/16 in Dia Bore, 10 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7-1/2 in OAH
- CP#:
- Item#: ZA6307
- Mfr#: ZA6307
- UPC: 793699902136
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Spyglass Optical Strain Sensor (OSS) technology
- Full bore contact for maximum shaft holding power, concentricity and running accuracy
- Accommodates undersized shafting
- Easily removable
- Positive locking system
- Tapered adapter sleeve
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Pillow Block Spherical Roller Bearing, Heavy Duty, Series: 6000, 3-7/16 in Bore, 10 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 13 in Overall Length, 5-1/32 in Overall Width, 7-1/2 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-7/16 in Base Width, Shurlok® Adapter Mount Locking Device, Clearance Seal, Non-Expansion (Fixed), 84330 lb Dynamic/90700 lb Static Load, 225 deg F, 2400 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 3-7/16 in |
| Base to Bore Centerline | : | 3-3/4 in |
| Series | : | 6000 |
| Bolt Center-to-Center Length | : | 10 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Shurlok® Adapter Mount |
| Finish | : | Powder Coated |
| Overall Length | : | 13 in |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 2400 rpm |
| Overall Width | : | 5-1/32 in |
| Inside Diameter | : | 3-7/16 in |
| Mounted | : | Yes |
| Overall Height | : | 7-1/2 in |
| Seal Type | : | Clearance |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_MMC6303_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_ZA6115_Specification_Sheet.pdf -
