MP9407F

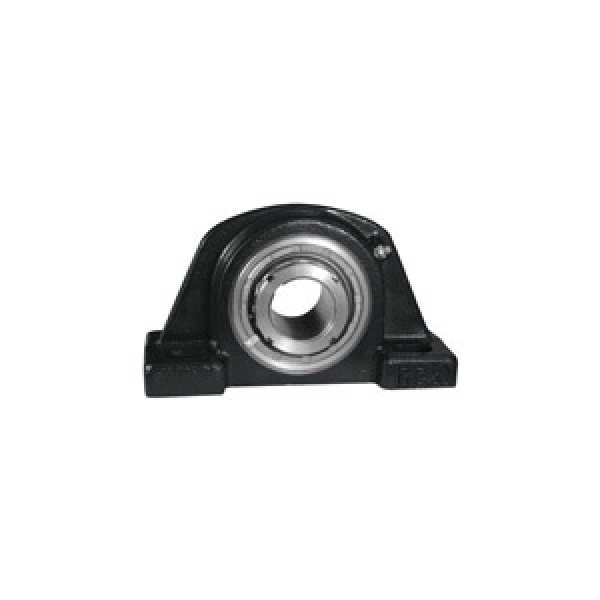

Rex® MP9407F 9000 Extra Heavy Duty Pillow Block Spherical Roller Bearing, 4-7/16 in Dia Bore, 16 in L Bolt Center-to-Center, 6-1/8 in Base to Bore Centerline, 20-1/4 in OAL x 12-1/2 in OAH
- CP#:
- Item#: MP9407F
- Mfr#: MP9407F
- UPC: 698210688578
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Full bore contact for maximum shaft holding power, concentricity and running accuracy
- Accommodates undersized shafting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Pillow Block Spherical Roller Bearing, Extra Heavy Duty, Series: 9000, 4-7/16 in Bore, 16 in Bolt Center-to-Center Length, 6-1/8 in Base to Bore Centerline, 20-1/4 in Overall Length, 6-3/4 in Overall Width, 12-1/2 in Overall Height, Four-Bolt Base Mounting, Round Bore, 7-1/2 in Base Width, Adapter Mounted Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 191100 lb Dynamic/241900 lb Static Load, 225 deg F, 1000 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 7-1/2 in |
| Base to Bore Centerline | : | 6-1/8 in |
| Series | : | 9000 |
| Bolt Center-to-Center Length | : | 16 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Adapter Mounted |
| Finish | : | Powder Coated |
| Overall Length | : | 20-1/4 in |
| Load Capacity | : | 191100 lb Dynamic/241900 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 1000 rpm |
| Overall Width | : | 6-3/4 in |
| Inside Diameter | : | 4-7/16 in |
| Mounted | : | Yes |
| Overall Height | : | 12-1/2 in |
| Seal Type | : | Spring-Loaded/Heavy Contact |
