MF9215

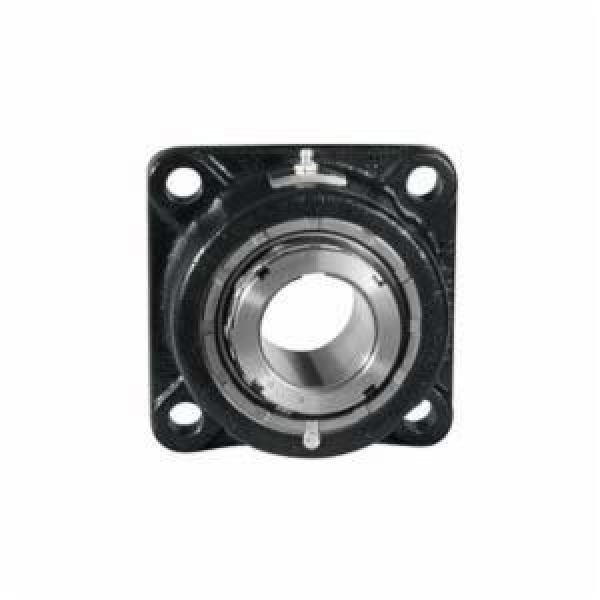

Rex® MF9215 9000 Fixed Extra Heavy Duty Flanged Block Spherical Roller Bearing, 2-15/16 in Dia Bore, 6-23/32 in L Bolt Center-to-Center, 4-3/4 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8-7/16 in OAL/Dia
- CP#:
- Item#: MF9215
- Mfr#: MF9215
- UPC: 698210684785
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Full bore contact for maximum shaft holding power, concentricity and running accuracy
- Accommodates undersized shafting
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Type M spring loaded heavy contact sea
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Flanged Block Spherical Roller Bearing, Fixed Extra Heavy Duty, Series: 9000, 2-15/16 in Bore, 6-23/32 in Bolt Center-to-Center Length, 4-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8-7/16 in Overall Length/Diameter, 4-1/2 in Overall Depth, 8-7/16 in Overall Height, Adapter Mounted Locking Device, Elastomer Seal, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6-23/32 in |
| Series | : | 9000 |
| Bolt Circle Diameter | : | 4-3/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Adapter Mounted |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Maximum Speed | : | 1400 rpm |
| Overall Depth | : | 4-1/2 in |
| Overall Height | : | 8-7/16 in |
| Inside Diameter | : | 2-15/16 in |
| Overall Length/Diameter | : | 8-7/16 in |
| Mounted | : | Yes |
| Seal Material | : | Elastomer |
