MF5307

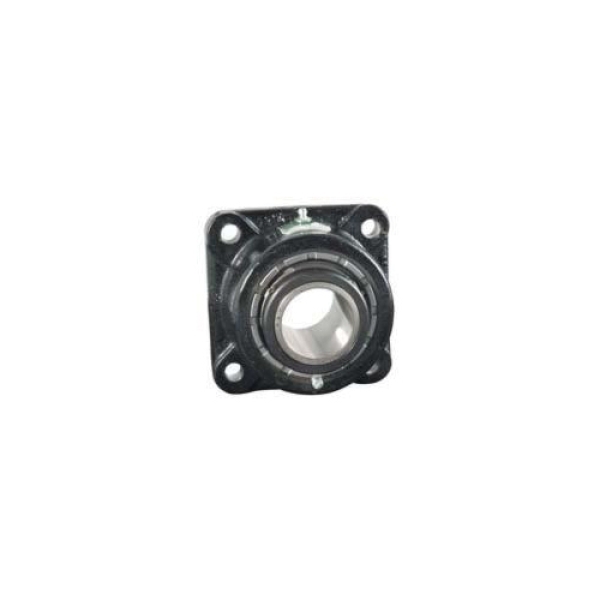

Rex® MF5307 5000 Fixed Heavy Duty Flanged Block Spherical Roller Bearing, 3-7/16 in Dia Bore, 6-23/32 in L Bolt Center-to-Center, 4-3/4 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8-7/16 in OAL/Dia
- CP#:
- Item#: MF5307
- Mfr#: MF5307
- UPC: 698210679781
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Increased shaft holding power and stability
- Type M spring loaded heavy contact seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Flanged Block Spherical Roller Bearing, Fixed Heavy Duty, Series: 5000, 3-7/16 in Bore, 6-23/32 in Bolt Center-to-Center Length, 4-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8-7/16 in Overall Length/Diameter, 5-5/16 in Overall Depth, 8-7/16 in Overall Height, Double Set Screw Collar Locking Device, Elastomer Seal, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6-23/32 in |
| Series | : | 5000 |
| Bolt Circle Diameter | : | 4-3/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Double Set Screw Collar |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Maximum Speed | : | 1400 rpm |
| Overall Depth | : | 5-5/16 in |
| Overall Height | : | 8-7/16 in |
| Inside Diameter | : | 3-7/16 in |
| Overall Length/Diameter | : | 8-7/16 in |
| Mounted | : | Yes |
| Seal Material | : | Elastomer |
