BMT95215

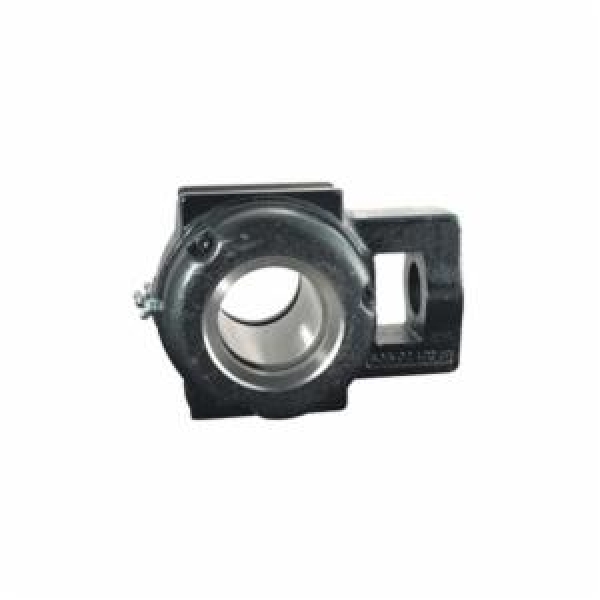

Rex® BMT95215 5000 Fixed Heavy Duty Take-Up Spherical Roller Bearing Unit, 2-15/16 in Dia Bore, 9-1/8 in L x 4-7/8 in W x 6-11/16 in H, 57750 lb Dynamic/71500 lb Static Load
- CP#:
- Item#: BMT95215
- Mfr#: BMT95215
- UPC: 698210685461
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with our standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Full bore contact for maximum shaft holding power, concentricity and running accuracy
- Accommodates undersized shafting
- Increased shaft holding power and stability
- Moderate cost
- Two hardened spring locking collars
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Size code 9
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Take-Up Spherical Roller Bearing Unit, Fixed Heavy Duty, Series: 5000, 2-15/16 in Bore Dia, 9-1/8 in Length, 4-7/8 in Width, 6-11/16 in Height, 57750 lb Dynamic/71500 lb Static Load, -40 to 275 deg F, Powder Coated
SPECIFICATIONS
| Series | : | 5000 |
| Finish | : | Powder Coated |
| Height | : | 6-11/16 in |
| Length | : | 9-1/8 in |
| Load Capacity | : | 57750 lb Dynamic/71500 lb Static |
| Inside Diameter | : | 2-15/16 in |
| Mounted | : | Yes |
| Width | : | 4-7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_11KB204N_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_2012U_Manual.pdf -
